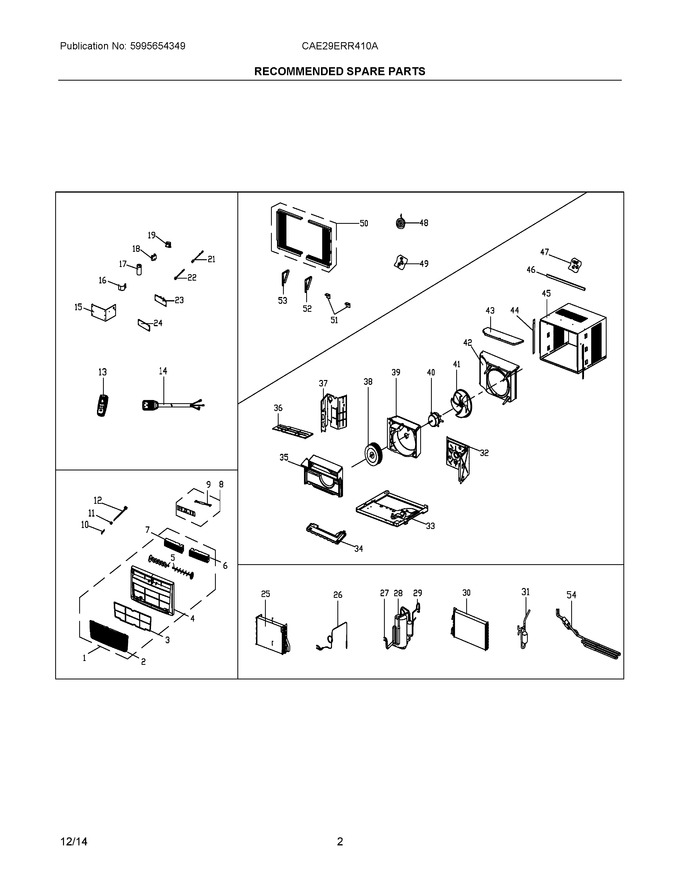

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483548		Panel, Front Assy		Appelez-nous	-
2	5304477143		Panel, Front Grille, Tilt-out		Appelez-nous	-
3	5304535829		Filter, Air, Plastic Frame   (Replaces: 5304477144)				$ 8.69
4	5304483549		Panel, Front Assy				$ 113.32
5	5304483550		Louver, Vertical		Appelez-nous	-
6	5304483551		Louver, Horizontal, Right		Appelez-nous	-
7	5304483552		Louver, Horizontal, Left		Appelez-nous	-
8	5304477181		Pc Board, Display/input		Appelez-nous	-
9	5304482502		Wire, Connector, Pc Boards		Appelez-nous	-
10	5304476243		Handle, Vent Control		Appelez-nous	-
11	5304476244		Link, Lever/vent Door, Detente		Appelez-nous	-
12	5304477149		Door, Vent Control, With Lever		Appelez-nous	-
13	5304482751		Remote Control, Transmitter		Appelez-nous	-
14	5304476312		Power Cord, Electric, Lcdi		Appelez-nous	-
15	5304476248		Control Box		Appelez-nous	-
16	5304476249		Strap, Capacitor Clamp		Appelez-nous	-
17	5304472621		Capacitor, Compressor		Appelez-nous	-
18	5304521130		Capacitor, Fan Motor   (Replaces: 5304482883)		Appelez-nous	-
19	5304535831		Transformer   (Replaces: 5304471063)		Appelez-nous	-
21	5304512374		Thermistor, Temp Sensor, Indoor   (Replaces: 5304491883)		Appelez-nous	-
22	5304512375		Sensor, Temperature, Evaporator   (Replaces: 5304471383)				$ 33.16
23	5304492070		Pc Board, Main, Control/power		Appelez-nous	-
24	5304476251		Holder, Mounting Plate, Control		Appelez-nous	-
25	5304483009		Evaporator		Appelez-nous	-
26	5304483010		Tube, Capillary		Appelez-nous	-
27	5304521155		Tube, Suction   (Replaces: 5304483011)		Appelez-nous	-
28	5304477187		Compressor		Appelez-nous	-
29	5304477188		Tube, Discharge		Appelez-nous	-
30	5304477189		Condenser				$ 572.93
31	5304476257		Dryer-filter		Appelez-nous	-
32	5304472351		Bulkhead, Partition, Front/right		Appelez-nous	-
33	5304476258		Base, Unit Chassis		Appelez-nous	-
34	5304472343		Tray, Drip Pan, Foam		Appelez-nous	-
35	5304476259		Scroll, Blower Housing, Front		Appelez-nous	-
36	5304482506		Cover, Front Board		Appelez-nous	-
37	5304492071		Bulkhead, Partition, Front/left		Appelez-nous	-
38	5304492072		Blower Wheel, Centrifugal Fan		Appelez-nous	-
39	5304476262		Scroll, Blower Housing, Rear		Appelez-nous	-
40	5304521142		Motor, Fan   (Replaces: 5304482882)		Appelez-nous	-
41	5304538708		Fan Blade, Axial Flow   (Replaces: 5304472356)				$ 50.16
42	5304472355		Shroud, Condenser/fan		Appelez-nous	-
43	5304472354		Cover, Condenser/fan, Rear		Appelez-nous	-
44	5304487540		Retainer, Shutter, Cabinet Sides		Appelez-nous	-
45	5304482507		Cabinet, Wrapper/sleeve		Appelez-nous	-
46	5304476265		Rail, Shutter Track, Top Channel		Appelez-nous	-
47	5304472364		Screw Kit, Top Rail Mount		Appelez-nous	-
48	5304472366		Seal Kit, Foam, Sash & Rails		Appelez-nous	-
49	5304476266		Hardware, Mounting, Screws/locks		Appelez-nous	-
50	5304476267		Window Filler Kit, Slider Panels, Accordion		Appelez-nous	-
51	5304472360		Bracket, Sill Angle		Appelez-nous	-
52	5304482508		Bracket, Mounting, Right Window		Appelez-nous	-
53	5304482509		Bracket, Mounting, Left Window		Appelez-nous	-
54	5304484144		Tube, Condensate Evap, Drain Pan		Appelez-nous	-
