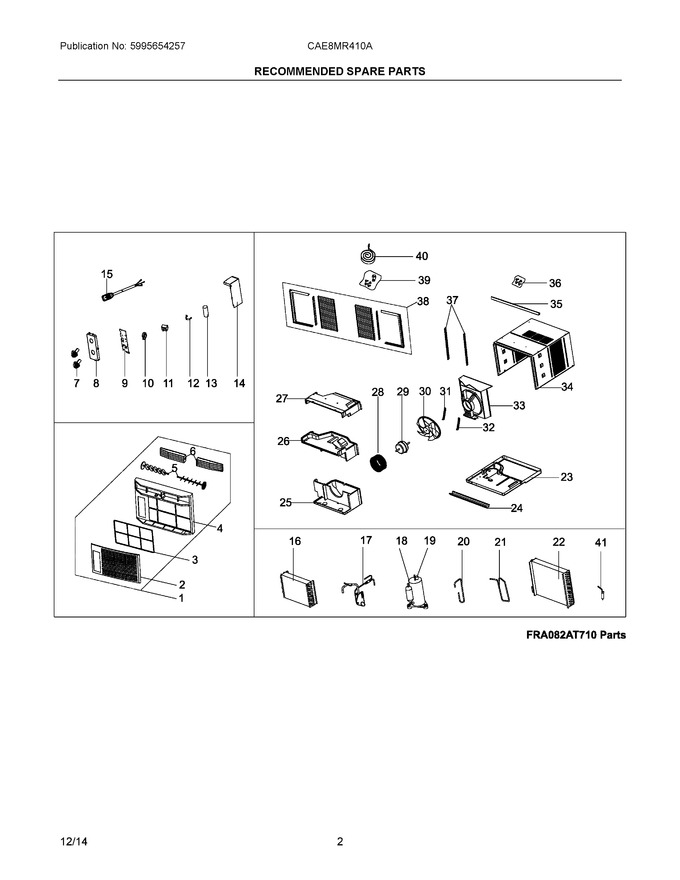

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304492076		Front Assembly, Complete Panel		Appelez-nous	-
2	5304492077		Panel, Front Grille, Tilt-out		Appelez-nous	-
3	5304492078		Filter, Air, Plastic Frame		Appelez-nous	-
4	5304492079		Frame, Front Assembly		Appelez-nous	-
5	5304492080		Louver, Vertical		Appelez-nous	-
6	5304492081		Louver, Horizontal		Appelez-nous	-
7	5304487522		Knob Assembly, Control, W/spring		Appelez-nous	-
8	5304477135		Control Panel, With Overlay		Appelez-nous	-
9	5304477053		Cover, Control Box		Appelez-nous	-
10	5304476765		Sensor Assembly, Temperature				$ 91.72
11	5304476766		Switch, Master, Rotary		Appelez-nous	-
12	5304471203		Strap, Capacitor Clamp		Appelez-nous	-
13	5304476003		Capacitor		Appelez-nous	-
14	5304486035		Control Box, Electrical		Appelez-nous	-
15	5304487573		Power Cord, Electric, Lcdi		Appelez-nous	-
16	5304492020		Evaporator, With, Capillary Tube		Appelez-nous	-
17	5304492021		Tube, Capillary		Appelez-nous	-
18	5304489721		Compressor, With Overload		Appelez-nous	-
19	5304492022		Overload Protector, Compressor		Appelez-nous	-
20	5304492023		Tube, Suction		Appelez-nous	-
21	5304492024		Tube, Discharge		Appelez-nous	-
22	5304492025		Condenser		Appelez-nous	-
23	5304486061		Base, Unit Chassis		Appelez-nous	-
24	5304483091		Rail, Shutter Track, Bottom		Appelez-nous	-
25	5304476557		Scroll, Blower Housing, Bottom		Appelez-nous	-
26	5304486038		Scroll, Blower Housing, Middle		Appelez-nous	-
27	5304486039		Scroll, Blower Housing, Top		Appelez-nous	-
28	5304476051		Blower Wheel, Centrifugal		Appelez-nous	-
29	5304486040		Motor, Fan		Appelez-nous	-
30	5304485430		Fan Blade, Axial		Appelez-nous	-
33	5304483090		Shroud, Condenser/fan		Appelez-nous	-
34	5304483093		Cabinet, Wrapper/sleeve		Appelez-nous	-
35	5304477054		Rail, Shutter Track, Top				$ 50.09
36	5304472191		Screw Kit, Top Rail Mount				$ 16.22
37	5304476523		Retainer, Shutter, Cabinet Sides				$ 6.54
38	5304476524		Window Filler Kit, Slider Panels, Accordion				$ 20.90
39	5304491953		Hardware, Mounting, Screws/locks				$ 19.52
40	5304472211		Seal Kit, Foam, Sash Filler				$ 36.12
41	5304476367		Filter-dryer				$ 45.55
