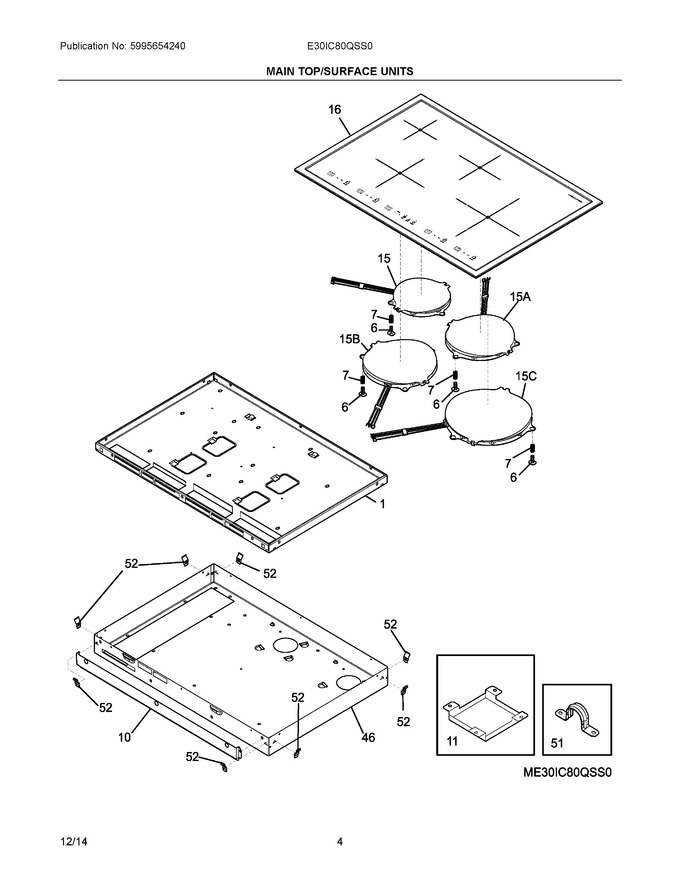

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304499609 | Box, Inner |
|
- | |||||
| 6 | 318405000 | Pin, Guide, Elements, (12) |
|
$ 21.53 | |||||
| 7 | 318534300 | Spring, Guide Pin, (12) |
|
$ 7.88 | |||||
| 10 | 318534000 | Deflector, Outer |
|
- | |||||
| 11 | 318381731 | Deflector, Air |
|
- | |||||
| 15 | 318329241 | Element, Induction Coil, 140mm |
|
$ 254.48 | |||||
| 16 | 305638948 | Main Top, Assembly, Glass/steel, Black/stainless, W/uib Boards |
|
- | |||||
| 46 | 5304499610 | Box, Burner, Outer |
|
- | |||||
| 51 | 318389600 | Bracket, Conduit Mtg. |
|
$ 14.18 | |||||
| 52 | 387174602 | Bracket, Spring, Cooktop Mtg. |
|
$ 6.30 | |||||
| 15A | 318329242 | Element, Induction Coil, 180mm |
|
$ 298.29 | |||||
| 15B | 318329243 | Element, Induction Coil, 210mm |
|
$ 347.16 | |||||
| 15C | 318329244 | Element, Induction Coil, 260mm |
|
$ 403.99 | |||||
| NI | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NIA | 73218-3010 | Foam Tape, 3/8 (Replaces: 5303323177) |
|
$ 50.40 | |||||
| NIA | 5304424462 | Foam Tape, 1/2" X 14 |
|
Immediately | $ 77.52 |
