SELECT A DIAGRAM

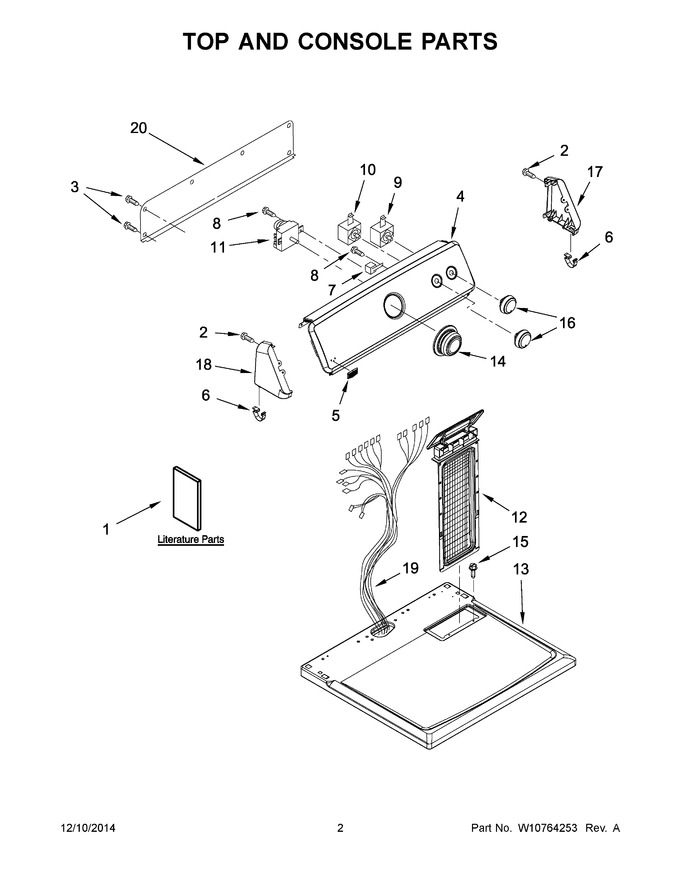

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562354		Use And Care Guide		Appelez-nous	-
2	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W11027432		Console (white)   (Replaces: W10692611)		Appelez-nous	-
5	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
9	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
10	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
11	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 170.80
12	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 49.17
13	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
14	W11837899		Assembly, Knob (grey)   (Replaces: W10558463)			Immediately	$ 16.95
15	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
16	W11837893		Knob, Control (grey)   (Replaces: W10562155)				$ 16.95
17	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 67.25
18	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 66.95
19	W11246728		Main, Wiring Harness   (Replaces: W10565800)		Appelez-nous	-
20	W10103406		Panel, Rear (console)				$ 121.78
1A	W10185985		Wiring Diagram		Appelez-nous	-
1B	W10562358		Installation Instructions		Appelez-nous	-
