SELECT A DIAGRAM

01 - Cover Sheet

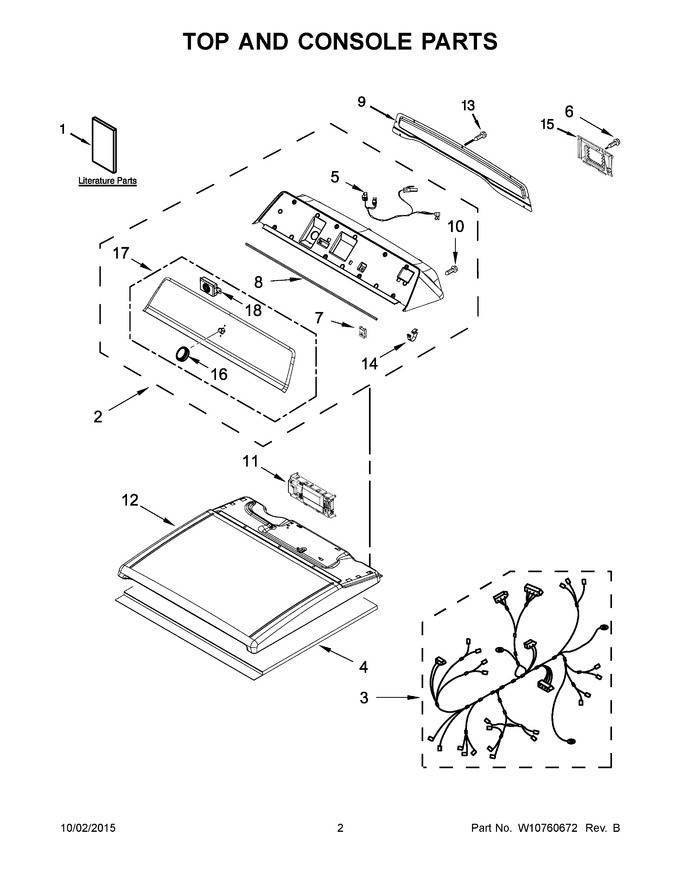

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W10642095		Console Assembly (complete) (white)				$ 362.84
3	W10706042		Wiring Harness, Main				$ 301.19
4	W10123956		Panel, Dampening		Appelez-nous	-
5	W10593673		Harness, User Interface				$ 34.71
6	W11661566		Screw   (Replaces: W10288126)				$ 13.26
7	98009179		Nut, "u   (Replaces: W10787282)				$ 12.63
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
11	WPW10771986		Control, Electronic   (Replaces: W10771986)				$ 357.09
12	W11227373		Top (white)   (Replaces: W10508981)				$ 230.05
13	W11568617		Screw   (Replaces: W10567155)				$ 13.25
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 93.64
16	W10853910		Knob, Timer (dryer) (chrome)   (Replaces: W10727011)				$ 48.55
17	W10849052		Fascia   (Replaces: W10618908)		Appelez-nous	-
18	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
12A	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 322.97
1A	W10680141		Use And Care Guide		Appelez-nous	-
1B	W10680150		Tech Sheet		Appelez-nous	-
1C	W10701469		Energy Guide		Appelez-nous	-
2A	W10682011		Console Assembly (complete) (chorme Shadow)				$ 431.51
