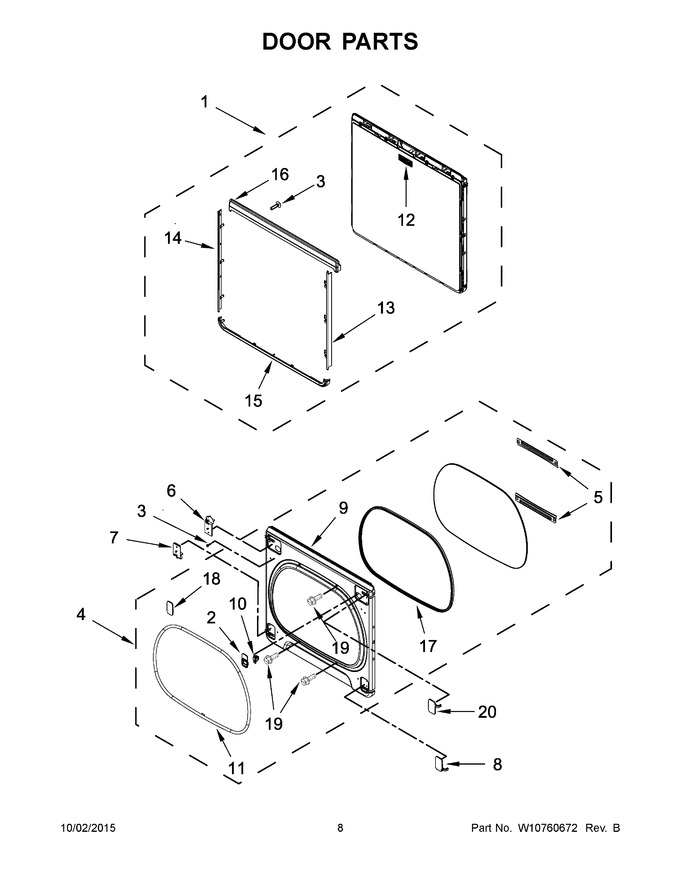

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10669027		Assembly, Outer Door (chrome Shadow)				$ 529.10
1	W10608727		Assembly, Door (white)		Appelez-nous	-
2	W11103932		Bezel, Door Catch (white)   (Replaces: W10631401)				$ 28.29
3	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
4	W10614997		Assembly, Inner Door (white)				$ 261.85
4	W10916628		Assembly, Inner Door (white)   (Replaces: W10614983)				$ 581.18
5	W10621182		Retainer, Window		Appelez-nous	-
6	W10850024		Hinge Assembly-blade, Door (upper) (chrome Shadow)   (Replaces: W10767920)				$ 85.53
6	W10623818		Hinge Assembly-blade, Door (left) (white)		Appelez-nous	-
7	W10850044		Hinge Assembly-blade, Door (lower) (chrome Shadow)   (Replaces: W10767921)				$ 85.42
7	W10623819		Hinge Assembly-blade, Door (right) (white)				$ 282.28
8	W10608740		Window, Door		Appelez-nous	-
8	W10631395		Hinge Cover, Bottom (white)		Appelez-nous	-
9	W10631394		Door, Inner (white)		Appelez-nous	-
9	W10614998		Door, Inner (white)		Appelez-nous	-
10	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 26.55
10	W11429587		Assembly, Door Catch   (Replaces: W10696503)			Immediately	$ 26.55
11	W10763835		Seal, Door   (Replaces: W10614993)			Immediately	$ 129.79
11	W10763835		Seal, Door			Immediately	$ 129.79
12	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
13	W10631398		Trim, Hinge Side		Appelez-nous	-
14	W10631399		Trim, Side		Appelez-nous	-
15	W10631400		Trim, Bottom		Appelez-nous	-
16	W10608739		Trim, Top				$ 312.84
17	W10608741		Seal, Window		Appelez-nous	-
17	W10726214		Seal, Window		Appelez-nous	-
18	W10631410		Catch, Door Cover (white)		Appelez-nous	-
19	WP488627		Screw   (Replaces: 342055)				$ 8.11
20	W10631396		Hinge Cover, Top (white)		Appelez-nous	-
21	W10631395		Hinge Cover, Top (white)		Appelez-nous	-
22	8572266		Bumper, Door			Immediately	$ 11.73
18A	W10669024		Catch, Door Cover (chrome Shadow)				$ 25.65
1A	W10669025		Assembly, Door (chrome Shadow)		Appelez-nous	-
20A	W10631413		Hinge Cover, Bottom (chrome Shadow)		Appelez-nous	-
21A	W10631412		Hinge Cover, Top (chrome Shadow)				$ 25.76
2A	W10669023		Bezel, Door Catch (chrome Shadow)				$ 23.64
4A	W10916629		Assembly, Inner Door (chrome Shadow)   (Replaces: W10614984)				$ 570.00
4A	W10615000		Assembly, Inner Door (chrome Shadow)				$ 271.77
6A	W10669211		Hinge Assembly-blade, Door (left) (chrome Shadow)		Appelez-nous	-
7A	W10669212		Hinge Assembly-blade, Door (right) (chrome Shadow)		Appelez-nous	-
9A	W10631402		Door, Inner (chrome Shadow)		Appelez-nous	-
9A	W10614999		Door, Inner (chrome Shadow)		Appelez-nous	-
