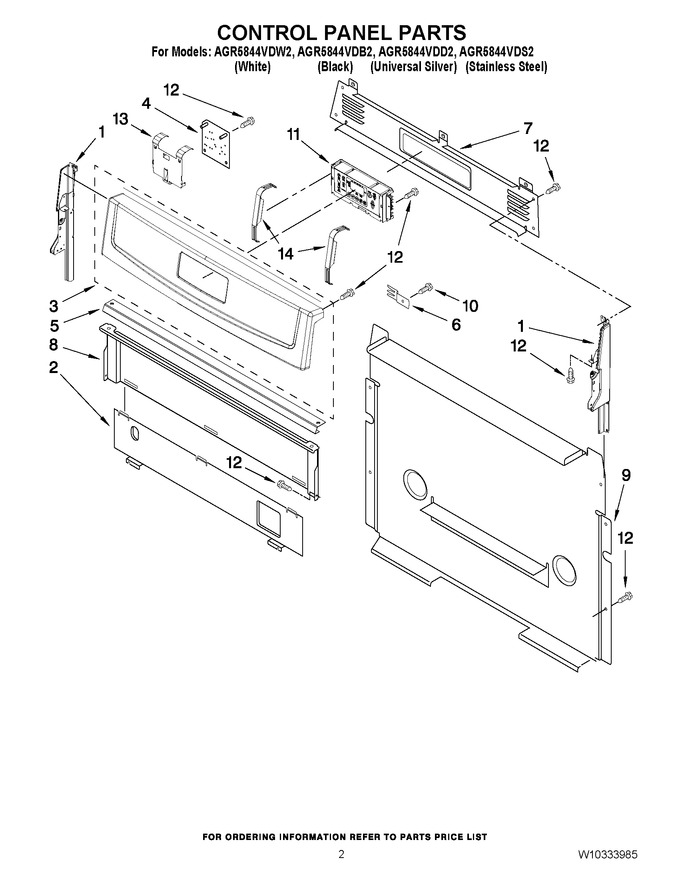

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Hand Left)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 45.17
2	8053505		Shield-heat, Lwr				$ 165.89
3	W10170024		Panel, Console (universal Silver)		Appelez-nous	-
3	W10170025		Panel, Console (stainless Model)		Appelez-nous	-
3	W10170023		Panel, Console (black)		Appelez-nous	-
3	W10170022		Panel, Console (white)		Appelez-nous	-
4	WPW10331686		Module, Spark   (Replaces: W10331686)			Immediately	$ 393.86
5	W10211996		Brkt-mntg,console		Appelez-nous	-
6	8523412		Bracket, Support				$ 167.90
7	W10198745		Cover, Upper				$ 128.90
8	W10192841		Shield, Heat				$ 106.69
9	W10184370		Cover, Back		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W10271732		Control, Range (black)		Appelez-nous	-
11	W10271731		Control, Range (white)				$ 353.39
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	W10516463		Brkt-mntg, Dsi   (Replaces: W10137524)		Appelez-nous	-
14	W11230932		Bracket, Eoc Mount   (Replaces: W10138683)			Immediately	$ 84.81
