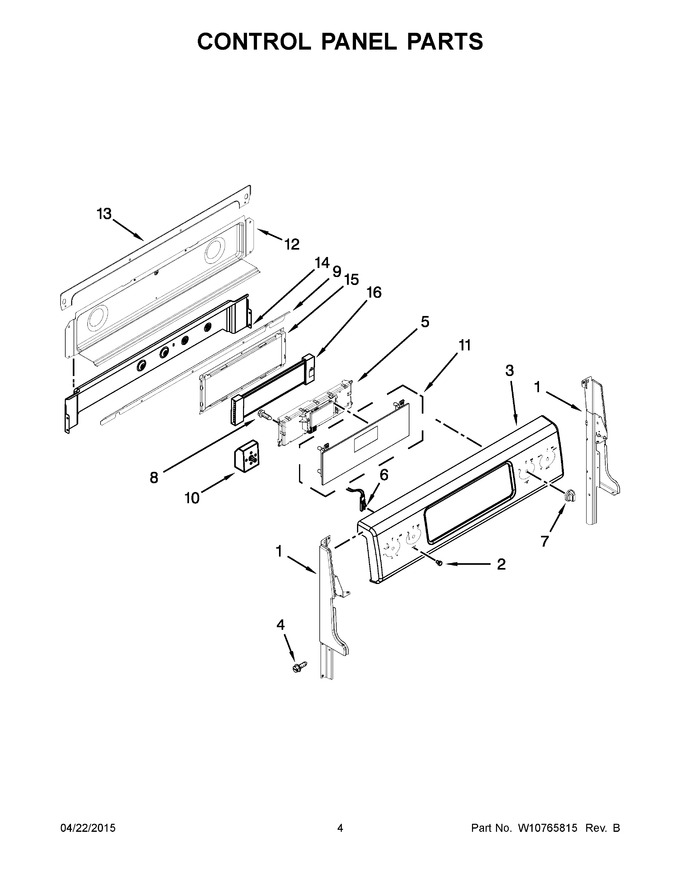

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 92.84
2	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
3	W10295099		Console (black)		Appelez-nous	-
4	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
5	W10365419		Control, Electronic		Appelez-nous	-
6	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.91
7	W10377035		Knob (black)		Appelez-nous	-
8	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
9	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 96.60
10	WPW10296657		Switch, Infinite (left Front)   (Replaces: W10296657)			Immediately	$ 301.92
11	W10295108		Assembly, User Interface (black)		Appelez-nous	-
12	W10296773		Cover, Backguard				$ 194.52
13	WPW10292689		Cover, Wire Filler   (Replaces: W10292689)				$ 95.35
14	W10278697		Shield, Vent			Immediately	$ 183.33
15	W10280451		Bracket, Glass Console		Appelez-nous	-
16	WPW10318787		Connector, Flex   (Replaces: W10318787)				$ 119.94
10A	WPW10295048		Switch, Infinite (left Rear)   (Replaces: W10295048)			Immediately	$ 159.95
10B	WPW10441696		Switch, Infinite (right Front)   (Replaces: W10441696)			Immediately	$ 132.72
10C	WP7403P238-60		Switch, Infinite (right Rear)   (Replaces: 7403P373-60)			Immediately	$ 74.78
1A	W10319111		Support, Backguard (black (right))				$ 43.80
1B	W10319110		Support, Backguard (white (left))				$ 95.95
1C	W10319112		Support, Backguard (white (right))				$ 93.79
3A	W10295098		Console (white)		Appelez-nous	-
3B	W10295100		Console (stainless)		Appelez-nous	-
7A	W10377036		Knob (white)		Appelez-nous	-
7B	W10377034		Knob (stainless)				$ 43.43
