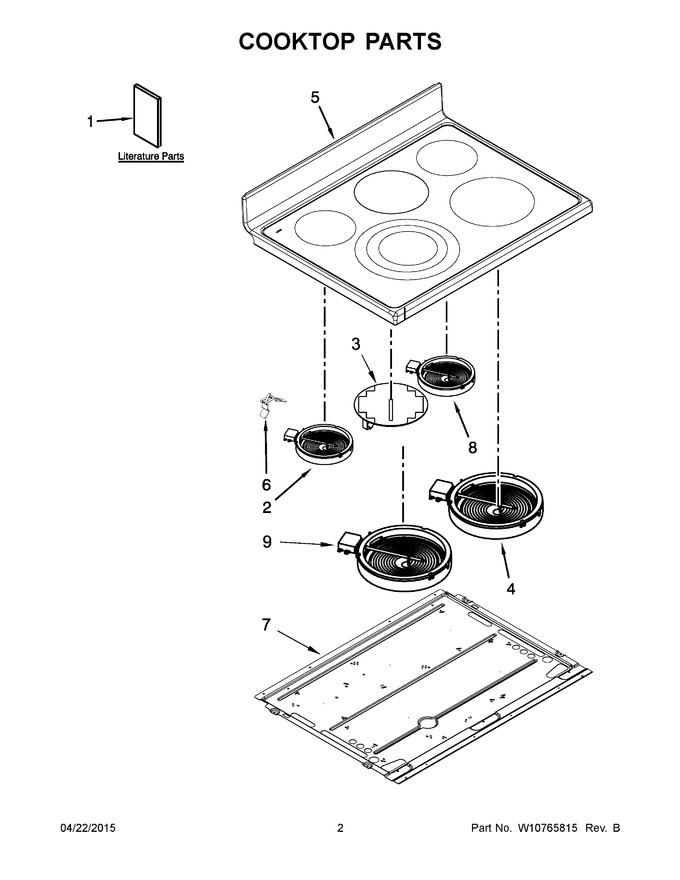

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10430931		Guide, Use & Care		Appelez-nous	-
2	WPW10270604		Element (700w) (left Rear)   (Replaces: W10270604)				$ 223.48
3	WP9762851		Element, Warm Zone (120v)   (Replaces: 9762851)			Immediately	$ 290.36
4	WPW10251107		Element (3200w) (right Front)   (Replaces: W10631481)				$ 357.60
5	W10336328		Cooktop (black)   (Replaces: W10260153)		Appelez-nous	-
6	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
7	WPW10260946		Support, Element   (Replaces: W10260946)				$ 135.10
8	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 225.62
9	W11101459		Element (2700w) (left Front)   (Replaces: W10259005)			Immediately	$ 215.72
1A	W10430958		Instructions, Installation		Appelez-nous	-
1B	W10457105		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
5A	W10336337		Cooktop (white)   (Replaces: W10299112)		Appelez-nous	-
5B	W10336329		Cooktop (stainless)   (Replaces: W10260155)			Immediately	$ 681.85
NI	W10631475		Harness, Cooktop		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 5.07
NI	WPW10281322		Block, Bare Wire Adapter   (Replaces: 7401P157-60)				$ 8.87
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10225701		Harness, Sensor & Locks				$ 184.15
NI	W10406512		Harness, Infinite Switch (left)				$ 143.35
NI	W10406501		Harness, Infinite Switch (right)				$ 20.94
NI	W10457079		Harness, Main		Appelez-nous	-
