01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts

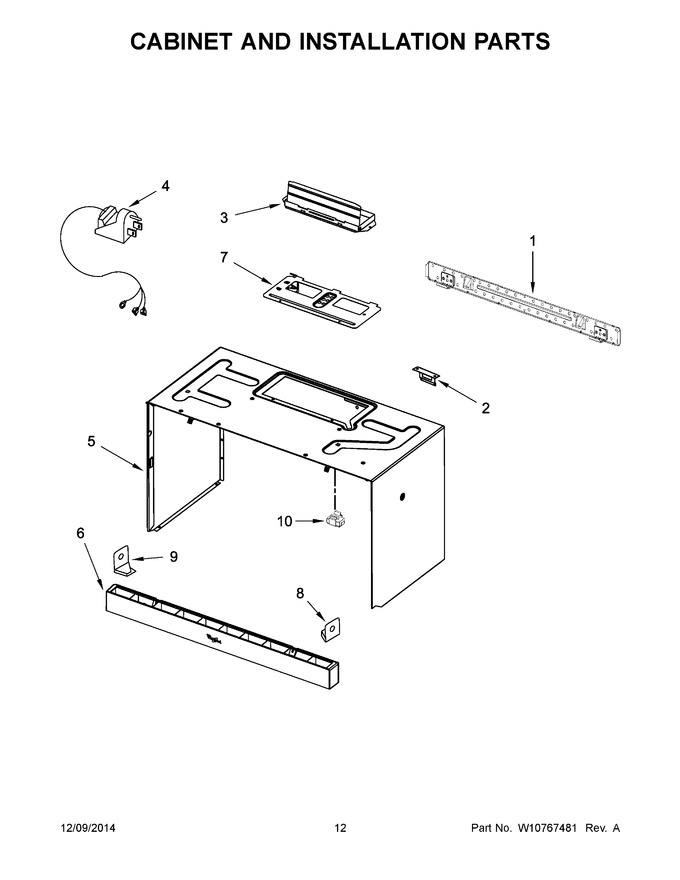

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 22.22
2	8206385		Support, Wire Clip				$ 33.48
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 76.13
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 19.40
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 262.73
6	W10468664		Grille, Vent (white)				$ 35.56
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10703282		Vent Holder, Right (white)				$ 9.90
9	W11026306		Vent Holder, Left (white)   (Replaces: W10703284)			Immediately	$ 6.80
10	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
5A	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 267.76
5B	W10461999		Case, Outer (biscuit)		Appelez-nous	-
6A	WPW10468666		Grille, Vent (black)   (Replaces: W10468666)				$ 42.44
6B	W10471684		Grille, Vent (biscuit)		Appelez-nous	-
6C	W10718221		Grille, Vent (stainless)				$ 122.83
8A	W10810989		Vent Holder, Right (black)   (Replaces: W10703283)				$ 9.20
9A	W10830163		Vent Holder, Left (black)   (Replaces: W10703285)				$ 12.79
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 12.02
NI	W10434800		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10543253		Miscellaneous Parts, Harness, Lamp & Turntable				$ 22.99
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 22.57
NI	W10498567		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer			Immediately	$ 22.10
NI	W10821385		Miscellaneous Parts, Hardware, Installation   (Replaces: W10728970)			Immediately	$ 93.35
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 6.80

    View Diagram in Separate Window       Print Part List
