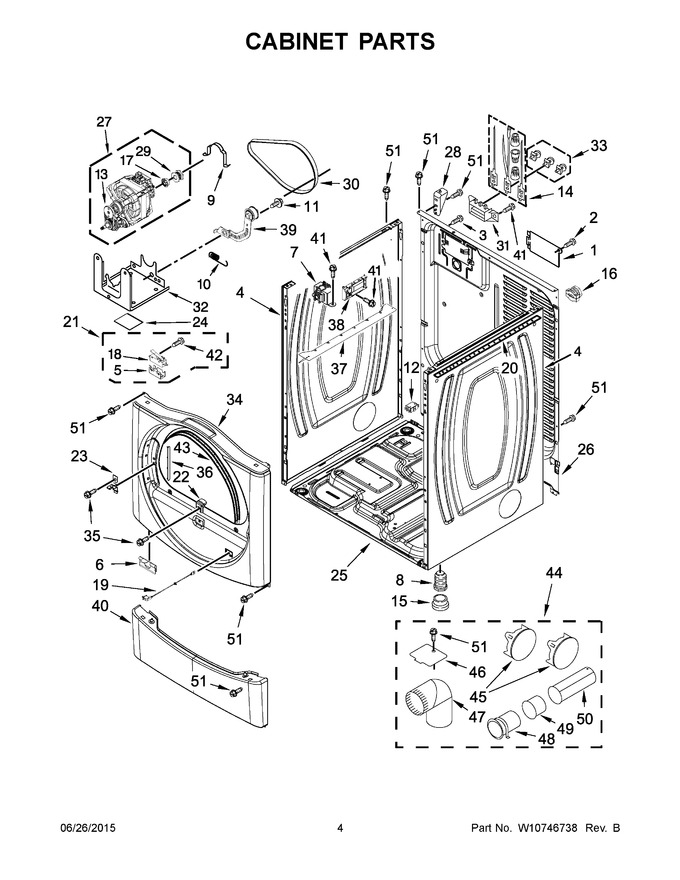

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10601020		Cover, Terminal Block		Appelez-nous	-
2	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw   (Replaces: 8533974)				$ 8.20
4	W10542714		Panel, Side (white)				$ 350.58
5	8564011		Bracket, Switch				$ 19.08
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
7	W10751202		Transformer, 240-22.5 Vac   (Replaces: W10633921)				$ 225.34
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	W10747115		Switch, Centrifugal		Appelez-nous	-
13	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 36.99
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 8.21
16	W11704629		Relief, Strain (power Cord)   (Replaces: 8316644)		Appelez-nous	-
17	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
18	W10410873		Assembly, Switch Actuator		Appelez-nous	-
19	W11192658		Assembly, Door Switch   (Replaces: W10459028)		Appelez-nous	-
20	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 39.71
21	W11236387		Assembly, Switch   (Replaces: W10259136)		Appelez-nous	-
22	8580015		Ramp, Door				$ 88.24
23	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 8.65
24	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 23.29
25	W11215531		Base, Cabinet   (Replaces: W10225178)				$ 365.36
26	W10225180		Panel, Rear		Appelez-nous	-
27	W11215537		Assembly, Motor 50 Hz.   (Replaces: W10747112)				$ 560.48
28	W10137398		Stop, Top Panel		Appelez-nous	-
29	W10167237		Pulley		Appelez-nous	-
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 134.62
33	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
34	W11192661		Panel, Front (white)   (Replaces: W10551281)		Appelez-nous	-
35	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
36	8565043		Plug, Front Panel				$ 97.29
37	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
38	W11315680		Board, Control   (Replaces: W10166377)				$ 597.59
39	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 94.57
40	WP8540621		Panel, Toe (white)   (Replaces: 8540621)				$ 189.38
41	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
42	3400934		Assembly, Screw And Insulator		Appelez-nous	-
43	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
44	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
45	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 76.65
46	WPW10354249		Plate, Cover   (Replaces: 8066115)				$ 9.41
47	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
48	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
49	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 82.90
50	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
51	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
