SELECT A DIAGRAM
01 - Cover Sheet

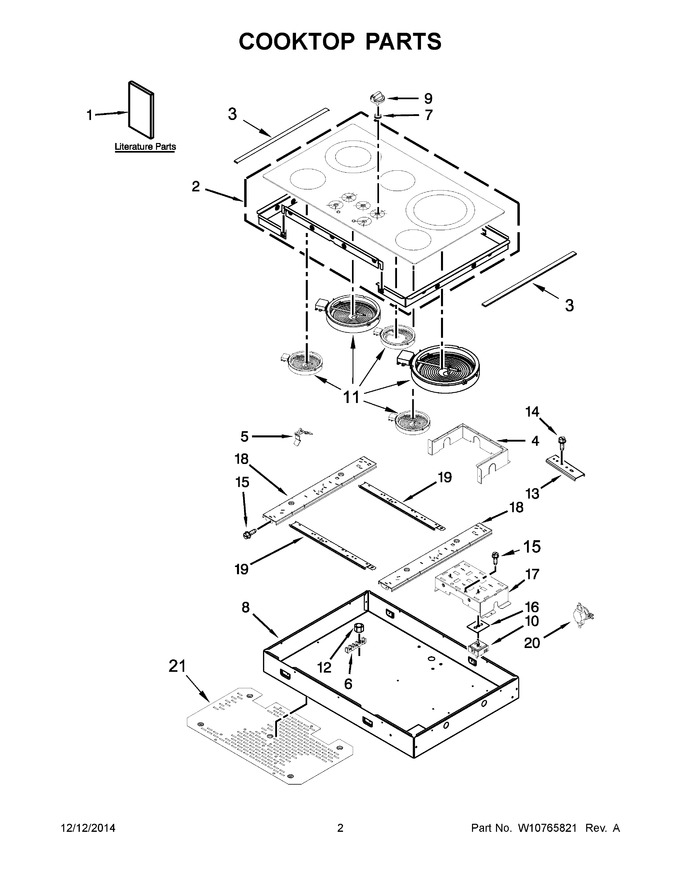

02 - Cooktop Parts
03 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10574205 | Instructions, Installation |
|
- | |||||
| 2 | W10570704 | Cooktop (black) |
|
$ 693.16 | |||||
| 3 | W10480460 | Trim, Side (stainless Models Only) |
|
$ 76.26 | |||||
| 4 | W10480494 | Shield, Cooktop |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 7 | WPW10293874 | Grommet, Switch (black) (Replaces: W10293874) |
|
Immediately | $ 8.46 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W10480478 | Knob (black) |
|
$ 95.37 | |||||
| 10 | WP74007840 | Switch, Infinite (left Front & Right Front) (Replaces: 7403P755-60) |
|
Immediately | $ 190.46 | ||||
| 11 | W11171119 | Element (1200w) (left Front & Right Front) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 12 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 17 | W11215839 | Plate, Switch (Replaces: W10291159) |
|
- | |||||
| 18 | W10311788 | Rail, Vertical |
|
- | |||||
| 19 | W10311793 | Rail, Horizontal |
|
- | |||||
| 20 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 21 | W10422069 | Bottom, Heat Shield |
|
- | |||||
| 10A | WPW10434447 | Switch, Infinite (left Rear & Right Rear) (Replaces: W10434447) |
|
$ 148.77 | |||||
| 10B | WPW10295048 | Switch, Infinite (center) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 11A | W11517959 | Element (3000/1400w) (left Rear) (Replaces: W10275048) |
|
Immediately | $ 146.68 | ||||
| 11B | W10823727 | Element (3000/1900w) (right Rear) (Replaces: W10162040) |
|
Immediately | $ 342.63 | ||||
| 11C | WPW10270604 | Element (700w) (center) (Replaces: W10270604) |
|
$ 223.48 | |||||
| 1A | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W10622708 | Guide, Use & Care |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 9A | W10480479 | Knob (stainless) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10631480 | Harness, Main |
|
- | |||||
| NI | W10478329 | Jumper |
|
- | |||||
| NI | W10316660 | Gasket |
|
$ 109.46 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | 8008P068-60 | Grommet, Wire |
|
$ 16.79 |
