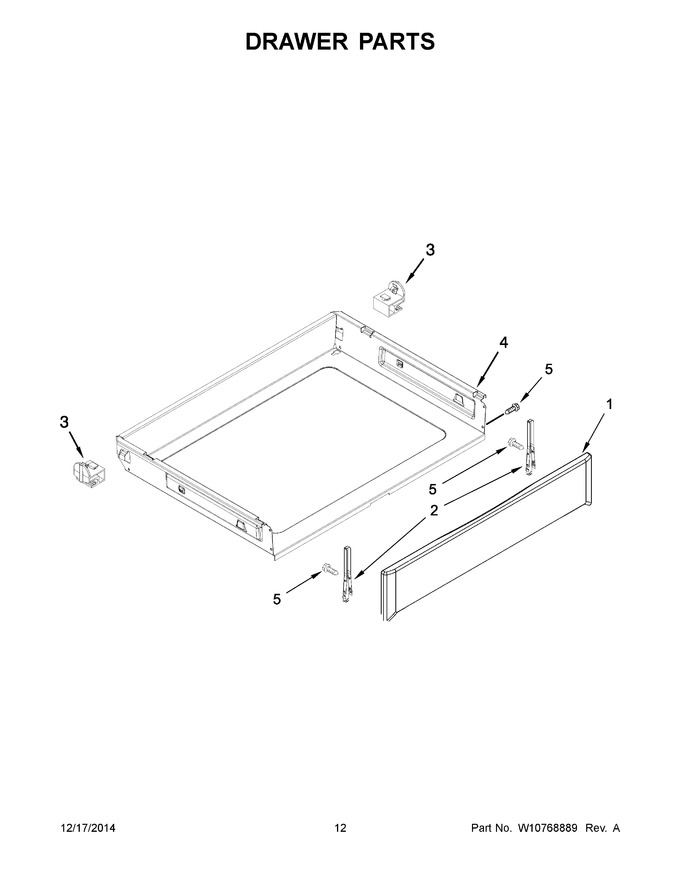

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10330041 | Panel, Drawer Front (white) |
|
$ 190.60 | |||||
| 2 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 39.27 | |||||
| 3 | W10763667 | Glide, Drawer Rear (Replaces: W10317899) |
|
Immediately | $ 107.68 | ||||
| 4 | W10813962 | Drawer, Storage (Replaces: W10663433) |
|
Immediately | $ 138.15 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 1A | W10330042 | Panel, Drawer Front (black) |
|
$ 139.27 | |||||
| 1B | WPW10330044 | Panel, Drawer Front (stainless) (Replaces: W10330044) |
|
$ 215.30 |
