SELECT A DIAGRAM

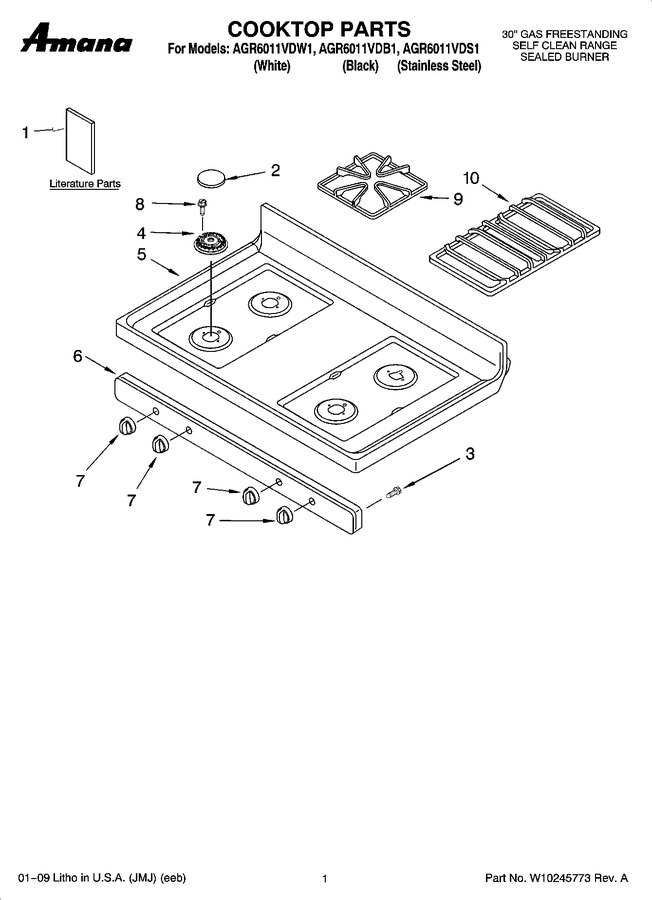

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10196154		Use & Care Guide		Appelez-nous	-
1	W10198636		Tech Sheet		Appelez-nous	-
1	W10196161		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	WPW10173832		Cap, Burner Lr (grey)   (Replaces: W10173832)				$ 79.28
2	WPW10169975		Cap, Burner Rr (grey)   (Replaces: W10169975)				$ 70.50
2	WPW10169985		Cap, Burner Rr (black)   (Replaces: W10169985)				$ 66.65
2	W10169974		Cap, Burner Lf & Rf (grey)				$ 29.04
2	WPW10169984		Cap, Burner Lf & Rf (black)   (Replaces: W10169984)				$ 71.75
2	W10173833		Cap, Burner Lr (black)		Appelez-nous	-
3	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
4	WPW10406243		Burner (rr(6k))   (Replaces: 8286181)			Immediately	$ 39.08
4	WPW10406283		Burner (lr - Rf(9k))   (Replaces: W10194076)				$ 78.02
4	WPW10406797		Burner (lf & Rf (12k))   (Replaces: 8286182)				$ 92.91
5	8272253		Cooktop (black)		Appelez-nous	-
5	8272251		Cooktop (white)		Appelez-nous	-
6	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
6	8523855		Panel, Manifold (black)				$ 176.18
7	W11190817		Knob, Control (2) (black)   (Replaces: W10163288)		Appelez-nous	-
7	WPW10163287		Knob, Control (2) (white)   (Replaces: W10163287)				$ 24.16
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	WPW10447925		Grate, Burner (4) (grey)   (Replaces: W10165803)			Immediately	$ 299.55
9	WPW10447925		Grate, Burner (4) (black)   (Replaces: 8522851)			Immediately	$ 299.55
10	8522846		Grate, Center (black)				$ 85.72
10	W10165811		Grate, Center (grey)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
