SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts

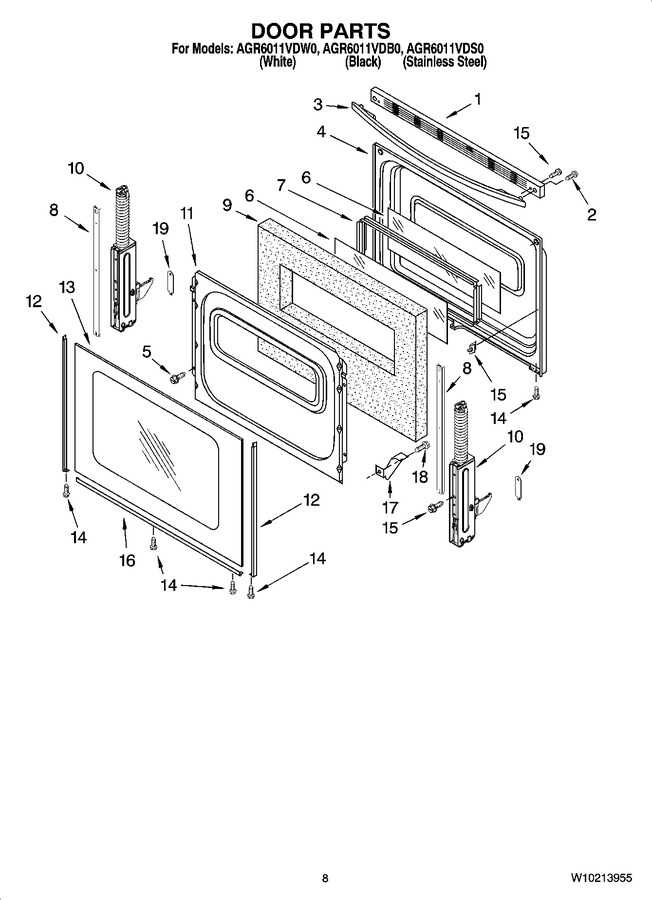

06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10817433		Trim, Top (white)   (Replaces: W10144869)			Immediately	$ 103.27
1	WPW10310922		Trim, Top (black)   (Replaces: W10144870)			Immediately	$ 175.37
1	WP9762391		Trim, Top (stainless Model)   (Replaces: 9762394)				$ 199.02
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 8.69
3	W10144890		Handle, Door (stainless Model)				$ 101.38
3	W10144888		Handle, Door (white)				$ 100.10
3	W10144889		Handle, Door (black)				$ 102.17
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 355.13
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Glass, Inner (2)   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 84.86
8	W11502236		Strap,door (2)   (Replaces: W10113759)			Immediately	$ 26.36
9	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 96.54
10	W10347466		Hinge, Door   (Replaces: 9761493)			Immediately	$ 209.37
10	W10347464		Stainless Model   (Replaces: 9761496)			Immediately	$ 127.60
11	W11539580		Retainer, Insul.   (Replaces: 9761357)				$ 221.30
12	W10761018		Trim, Door Side Left Hand (black)   (Replaces: 8523171)			Immediately	$ 53.77
12	8184858		Trim, Door Side Left Hand (stainless Model)   (Replaces: W10113926)				$ 160.81
12	WP8523172		Trim, Door Side Left Hand (white)   (Replaces: 8523172)			Immediately	$ 69.93
12	8184858		Trim, Door Side Right Hand (stainless Model)   (Replaces: W10113925)				$ 160.81
12	W10761014		Trim, Door Side Right Hand (black)   (Replaces: 8523165)			Immediately	$ 72.96
12	WP8523166		Trim, Door Side Right Hand (white)   (Replaces: 8523166)			Immediately	$ 84.23
13	WPW10118454		Glass, Outer Door (white)   (Replaces: W10118454)				$ 309.44
13	WPW10118455		Glass, Outer Door (black)   (Replaces: W10118455)			Immediately	$ 316.86
14	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
15	3196025		Clip, Door Glass				$ 20.10
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
16	W11594186		Trim, Bottom (white)   (Replaces: 8523175)			Immediately	$ 58.45
16	WP8523177		Trim, Bottom (black)   (Replaces: 8523177)			Immediately	$ 157.96
17	3196794		Bracket, Window				$ 24.34
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
19	9761517		Clip,door Mntg(2)				$ 45.82
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	799832		Kit, Porcelain Repair (white)		Appelez-nous	-
NI	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 83.07
NI	261582		Grease		Appelez-nous	-
NI	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
NI	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
NI	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 49.29
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 57.04
NI	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 89.66
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	4396923		Pan, Broiler			Immediately	$ 57.82
NI	W11447673		Anti-tip Kit   (Replaces: W10017440)				$ 31.82
NI	W10174441		Harness, Main		Appelez-nous	-
NI	WPW10701462		Harness, Bake & Broil Ignitor   (Replaces: W10170250)				$ 95.88
NI	8523599		Harness, Wire (cooktop Spark)				$ 139.59
NI	W10045060		Harness, Grnd Dsi				$ 8.54
NI	WP3196174		Screw, Ground   (Replaces: 3196174)			Immediately	$ 7.82
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 84.76
NI	3196896		Clip, Wire		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
NI	W11244557		Screw   (Replaces: 3196173)				$ 13.61
NI	3195927		Wire, Tie		Appelez-nous	-
NI	3196696		Clip, Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
