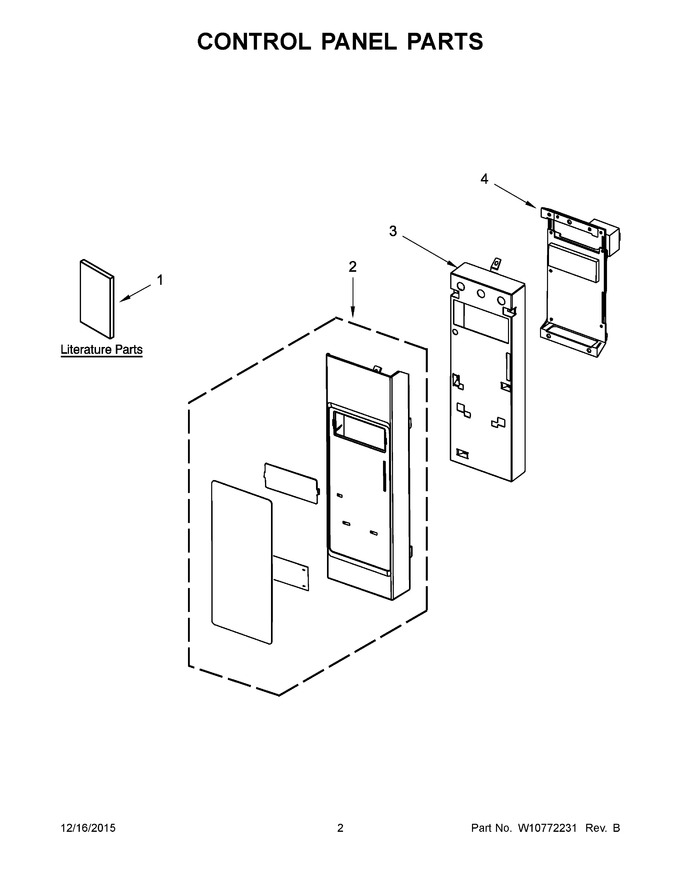

02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10344701		Installation Instructions		Appelez-nous	-
2	W10468660		Control Panel Assembly (includes Lens And Membrane Switch) (white)				$ 345.47
3	W10468659		Backer, Control				$ 85.83
4	WPW10692229		Microcomputer   (Replaces: W10692229)				$ 315.58
1A	W10458011		Use And Care Guide		Appelez-nous	-
1B	W10458017		Cook Guide Label		Appelez-nous	-
1C	W10458014		Tech Sheet		Appelez-nous	-
2A	W10468661		Control Panel Assembly (includes Lens And Membrane Switch) (black)				$ 332.73
2B	W10443378		Control Panel Assembly (includes Lens And Membrane Switch) (stainless)				$ 326.88
