SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)

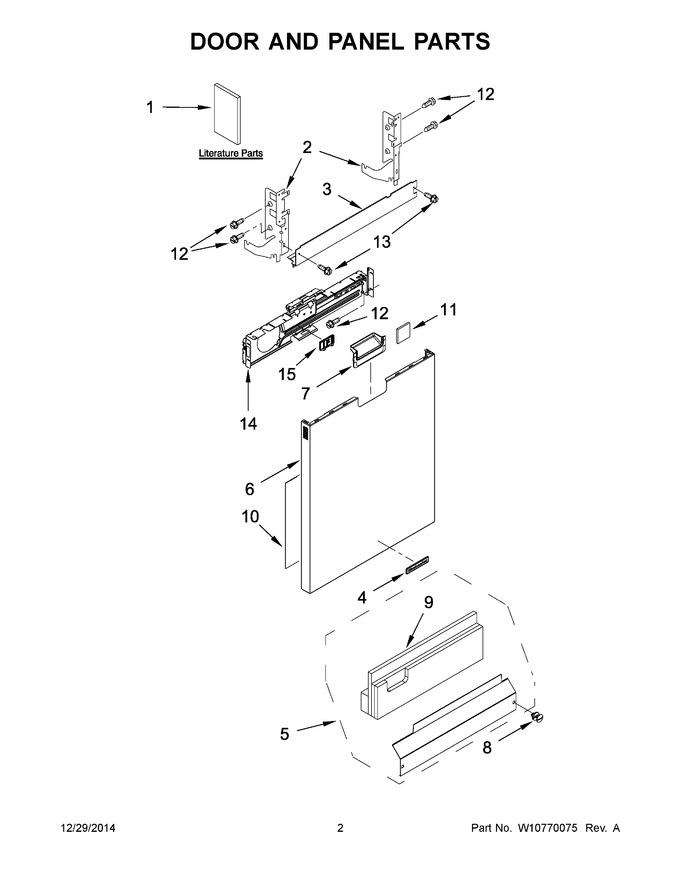

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10321621		Instructions, Installation		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10321448)			Immediately	$ 32.88
4	WPW10243391		Nameplate (grey)   (Replaces: W10243391)				$ 58.31
5	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 149.53
6	W10195531		Front Panel (includes Items 4 & 7) (stainless)				$ 185.43
7	W10563099		Pocket, Handle (stainless)				$ 148.79
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
10	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
11	W10354790		Block, Foam				$ 11.38
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
15	W10463662		Spacer, Control Bracket Panel				$ 49.41
1A	W10638776		Energy Guide		Appelez-nous	-
1B	W10567447		Use & Care Guide		Appelez-nous	-
1C	W10455257		Tech Sheet, English		Appelez-nous	-
1D	W10455258		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24

    View Diagram in Separate Window       Print Part List
