01 - Cover Sheet

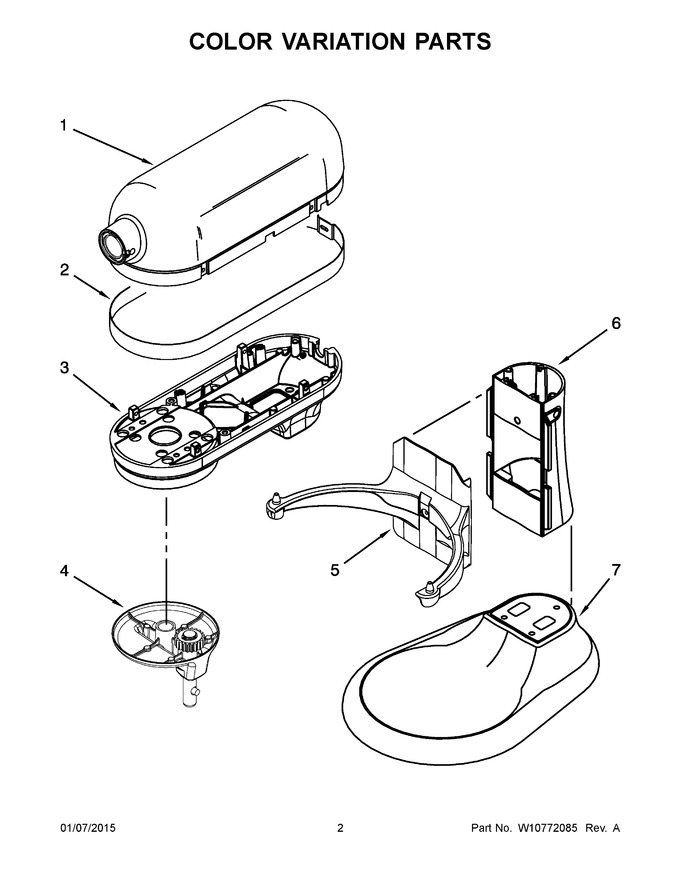

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10291075 | Motor Housing (satin Copper) |
|
- | |||||
| 2 | W10519860 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W10714952 | Lower Gearcase (satin Copper) |
|
- | |||||
| 4 | W10715424 | Planetary (satin Copper) |
|
- | |||||
| 5 | W10112815 | Bowl Support And Pins (satin Copper) |
|
- | |||||
| 6 | W10112817 | Column And Pins (satin Copper) |
|
- | |||||
| 7 | W10112820 | Base And Foot Assembly (satin Copper) |
|
- | |||||
| 1A | W10291067 | Motor Housing (brushed Nickel) |
|
- | |||||
| 3A | W10714951 | Lower Gearcase (brushed Nickel) |
|
- | |||||
| 4A | W10715423 | Planetary (brushed Nickel) |
|
- | |||||
| 5A | W10112553 | Bowl Support And Pins (brushed Nickel) |
|
- | |||||
| 6A | WPW10112556 | Column And Pins (brushed Nickel) (Replaces: W10112556) |
|
$ 225.99 | |||||
| 7A | W10112559 | Base And Foot Assembly (brushed Nickel) |
|
- |
