SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

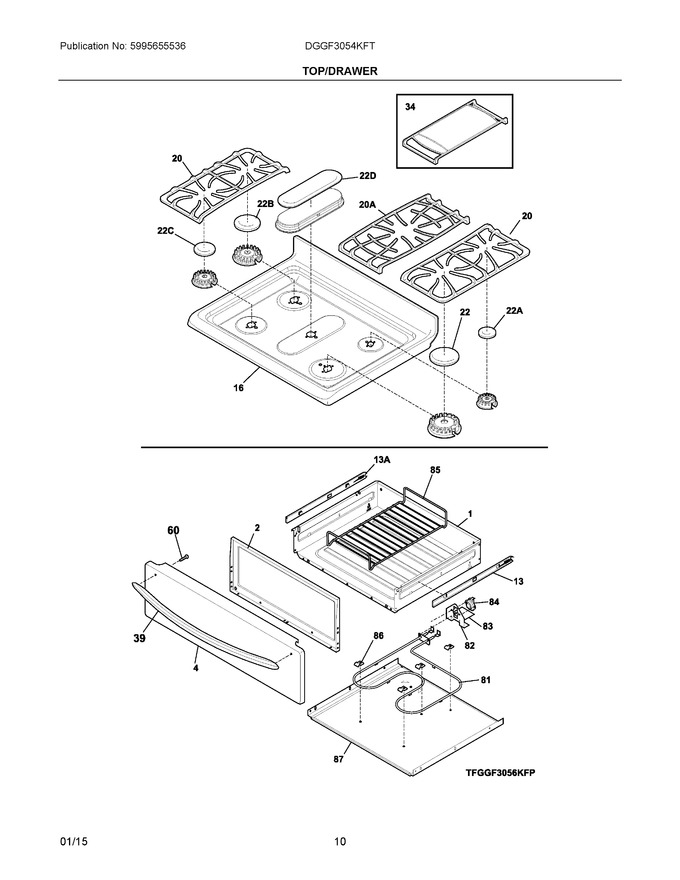

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer, Warmer   (Replaces: 316408901)				$ 159.39
2	5304527988		Liner, Black, Drawer   (Replaces: 316403203)			Immediately	$ 29.49
4	5304494412		Panel, Drawer, Stainless, Outer   (Replaces: 316409317)				$ 109.48
13	316415000		Glide, Warmer, Inner Rh				$ 65.36
16	316469653		Maintop Panel, Black				$ 510.98
20	316499806		Grate, Black, (2)   (Replaces: 316499502)				$ 393.51
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 54.94
34	316499900		Griddle				$ 114.83
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 187.16
60	5303288572		Screw-handle Mtg		Appelez-nous	-
81	316437300		Element, Warmer Drawer				$ 117.97
82	316093200		Bracket, Element Mtg		Appelez-nous	-
83	316093300		Shield, Terminal, Warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc, Warmer Drawer				$ 56.70
85	807328301		Rack, Warmer Drawer				$ 96.90
86	316095800		Clip, Hold Down, (3)				$ 9.93
87	316091900		Base, Warmer Drawer				$ 221.55
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 65.36
20A	316499806		Grate, Center, Black   (Replaces: 316551802)				$ 393.51
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 51.12
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 80.33
NI	316525629		Harness, Warm Base		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
