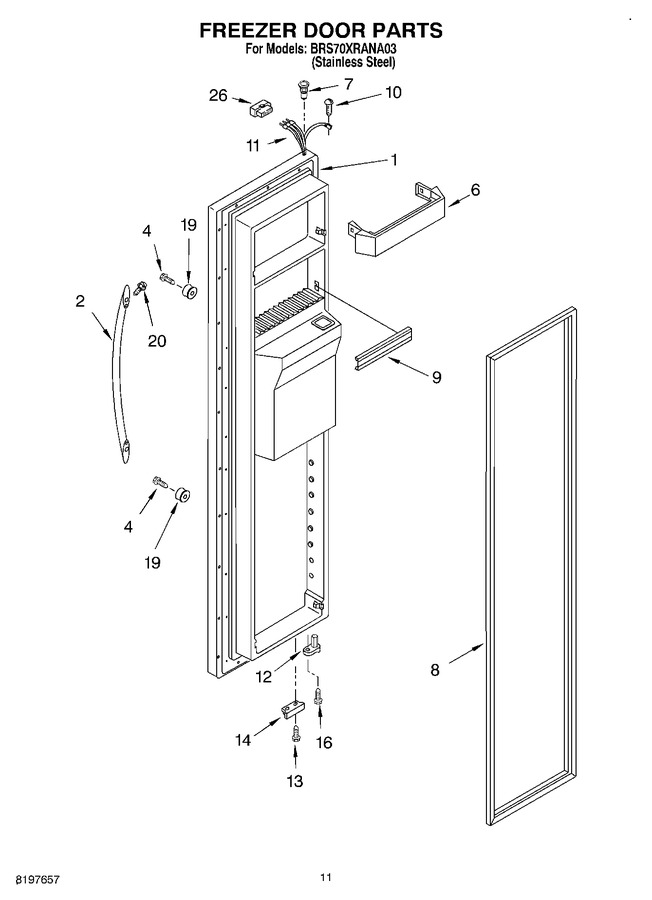

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205950S		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2204454S		Handle (includes Item 20)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.43
6	2204072		Trivet, Shelf (4)		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.34
8	2159082		Door Gasket, Magnetic (service)				$ 299.24
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 21.84
10	WP489128		Screw   (Replaces: 488500)				$ 10.26
11	2187274		Wiring Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2195952		Bracket, Door Stop		Appelez-nous	-
16	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
19	2203690		Stud, Handle		Appelez-nous	-
20	98654		Set Screw		Appelez-nous	-
26	WP2154473		Connector   (Replaces: 2154473)				$ 22.35

    View Diagram in Separate Window       Print Part List
