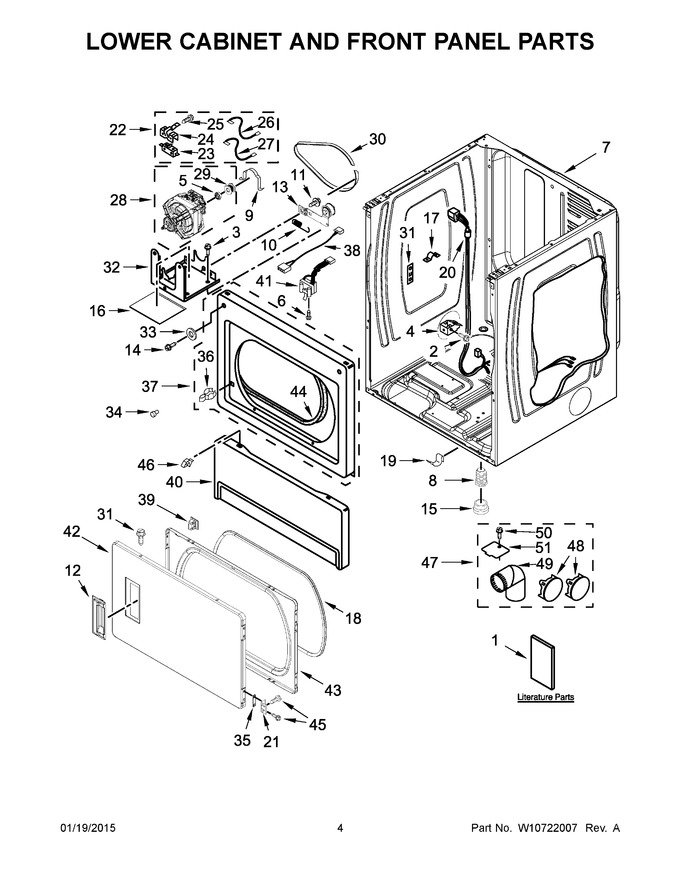

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10761033 | Installation Instructions |
|
- | |||||
| 2 | 681615 | Screw (Replaces: 3391915) |
|
$ 14.57 | |||||
| 3 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 22.21 | |||||
| 5 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 440.17 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 79.54 | ||||
| 13 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 87.96 | ||||
| 14 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 7.29 | |||||
| 15 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 16 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 23.29 | |||||
| 17 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.64 | |||||
| 18 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 137.13 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 20 | W10702049 | Harness |
|
- | |||||
| 21 | WPW10279703 | Hinge & Pin Assembly (silver) (Replaces: W10279703) |
|
$ 75.83 | |||||
| 22 | 279782 | Switch Assembly (Replaces: 8066134) |
|
Immediately | $ 54.44 | ||||
| 23 | 279782 | Switch - Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 24 | WP8066120 | Lever Switch (Replaces: 8066120) |
|
Immediately | $ 34.77 | ||||
| 25 | WP98129 | Screw (Replaces: 98129) |
|
$ 8.18 | |||||
| 26 | W10167612 | Wire, Belt Switch |
|
$ 13.42 | |||||
| 27 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 64.66 | |||||
| 28 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 234.31 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 31 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 140.27 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 11.06 | |||||
| 34 | 693152 | Bumper |
|
$ 11.51 | |||||
| 35 | W10191265 | Plug, Hinge (white) |
|
$ 46.49 | |||||
| 36 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 37 | W10242810 | Panel, Front (white) (Replaces: W10192882) |
|
$ 386.67 | |||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 87.92 | |||||
| 39 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 40 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 250.25 | |||||
| 41 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 42 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 272.34 | |||||
| 43 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 301.37 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 48 | W10470674 | Multivent Plug (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 49 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 50 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 8.28 | ||||
| 51 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 9.41 | |||||
| 1A | W10135168 | Tech Sheet |
|
- | |||||
| 1B | W10738550 | Wiring Diagram |
|
- |
