SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel And Separator Parts

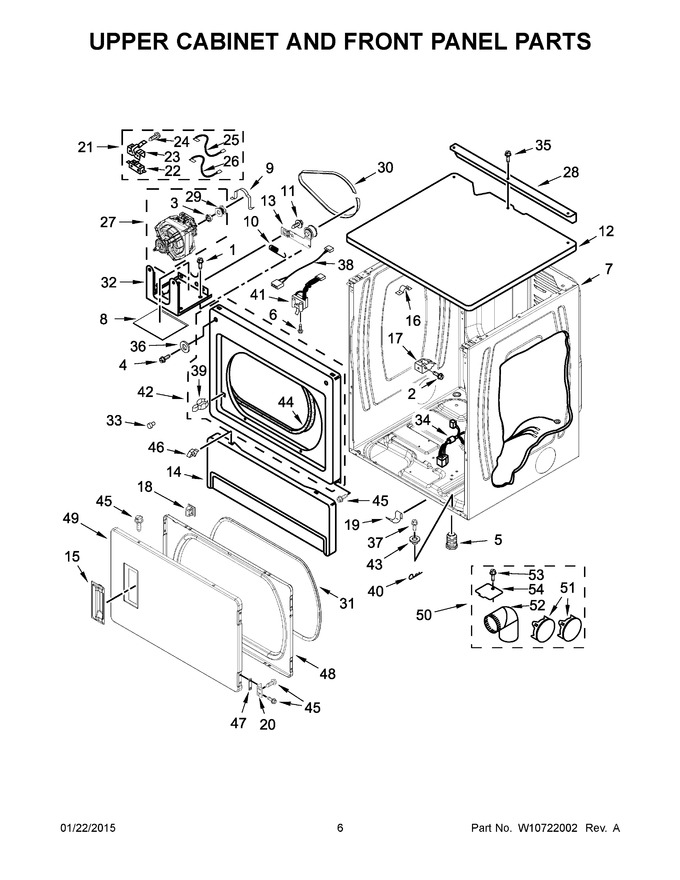

03 - Lower Cabinet And Front Panel Parts


04 - Upper Cabinet And Front Panel Parts


05 - Upper And Lower Bulkhead Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 8.47
2	681615		Screw   (Replaces: 3391915)				$ 14.57
3	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
4	WP3400077		Screw   (Replaces: 3400077)				$ 7.29
5	WP689172		Foot, Dryer Plastic   (Replaces: 689172)				$ 85.51
6	WP3395530		Screw   (Replaces: 697773)				$ 8.57
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 440.17
8	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 23.29
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	3389351		Top (white)		Appelez-nous	-
13	WPW10344193		Pulley-idler Assembly   (Replaces: W10344193)			Immediately	$ 87.96
14	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 250.25
15	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 79.54
16	WP98997		Clip   (Replaces: 98997)				$ 11.64
17	3391846		Clip, Front Panel				$ 22.21
18	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
19	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
20	WPW10279703		Hinge & Pin Assembly (silver)   (Replaces: W10279703)				$ 75.83
21	279782		Switch Assembly   (Replaces: 8066134)			Immediately	$ 54.44
22	279782		Switch - Belt   (Replaces: 3394881)			Immediately	$ 54.44
23	WP8066120		Lever Switch   (Replaces: 8066120)			Immediately	$ 34.77
24	WP98129		Screw   (Replaces: 98129)				$ 8.18
25	W10167612		Wire, Belt Switch				$ 13.42
26	3398948		Wire, Jumper (broken Belt Switch)				$ 64.66
27	W10841144		Motor   (Replaces: W10396031)			Immediately	$ 234.31
28	3979115		Bracket, Angle		Appelez-nous	-
29	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	693152		Bumper				$ 11.51
34	W10702049		Harness		Appelez-nous	-
35	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
36	W11089212		Washer   (Replaces: 3392186)				$ 11.06
37	3400523		Bolt, Security		Appelez-nous	-
38	8283298		Jumper, Door Switch				$ 87.92
39	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
40	W10117347		Cotter Pin		Appelez-nous	-
41	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 55.64
42	W10242810		Panel, Front (white)   (Replaces: W10192882)				$ 386.67
43	3389233		Bushing		Appelez-nous	-
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw   (Replaces: 342055)				$ 8.11
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	N/P		Plug, Hinge		Appelez-nous	-
48	280083		Door, Rear   (Replaces: W10323061)				$ 301.37
49	W11663440		Door, Front   (Replaces: W10322546)				$ 272.34
50	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
51	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 76.65
52	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
53	WP488729		Screw   (Replaces: 488729)			Immediately	$ 8.28
54	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
49A	W10191265		White				$ 46.49

    View Diagram in Separate Window       Print Part List
