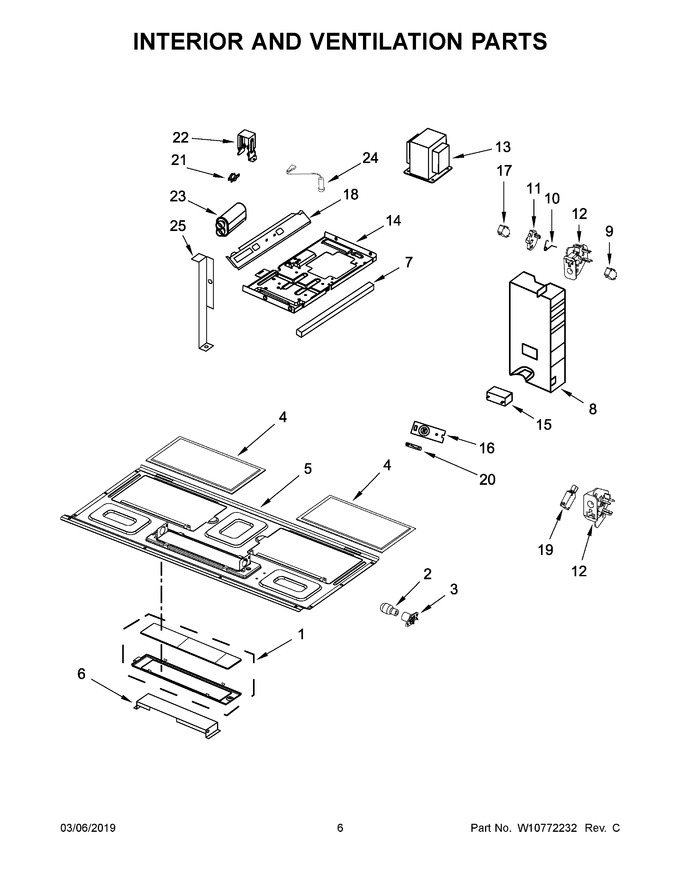

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240330		Assembly, Lamp Glass And Holder				$ 7.19
2	8206232A		Lamp, 40 Watt   (Replaces: 8206232)			Immediately	$ 7.34
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10245196		Plate, Bottom				$ 244.83
6	W10250586		Reflector, Lamp				$ 130.39
7	W11523261		Cushion, Ntc   (Replaces: W10313276)		Appelez-nous	-
8	W10448770		Air Guide, Lower				$ 20.06
9	W10269458		Microswitch V15t16-cc200/nc			Immediately	$ 40.11
10	W10156812		Spring, Interlock			Immediately	$ 12.14
11	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
13	W10836753		Transformer, High Voltage   (Replaces: W10681123)			Immediately	$ 236.06
14	W10269456		Chassis				$ 78.11
15	W11405832		Capacitor, Hood Motor   (Replaces: W10210855)				$ 27.24
16	W10163422		Thermistor				$ 171.14
17	W10727360		Microswitch V15t16-cz200/nc/no   (Replaces: W10269457)			Immediately	$ 5.82
18	W10476124		Support, Ntc		Appelez-nous	-
19	W10269460		Microswitch V15t16-cp200/no			Immediately	$ 45.95
20	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
21	W10269232		Thermostat, Cavity				$ 70.74
22	W10532063		Bracket, Capacitor				$ 28.28
23	8206562		Capacitor, High Voltage			Immediately	$ 120.92
24	W11817793		Diode, High Voltage   (Replaces: W10492278)		Appelez-nous	-
25	W10313275		Bracket, Top Cavity				$ 33.92
12A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07

    View Diagram in Separate Window       Print Part List
