01 - Cover Sheet

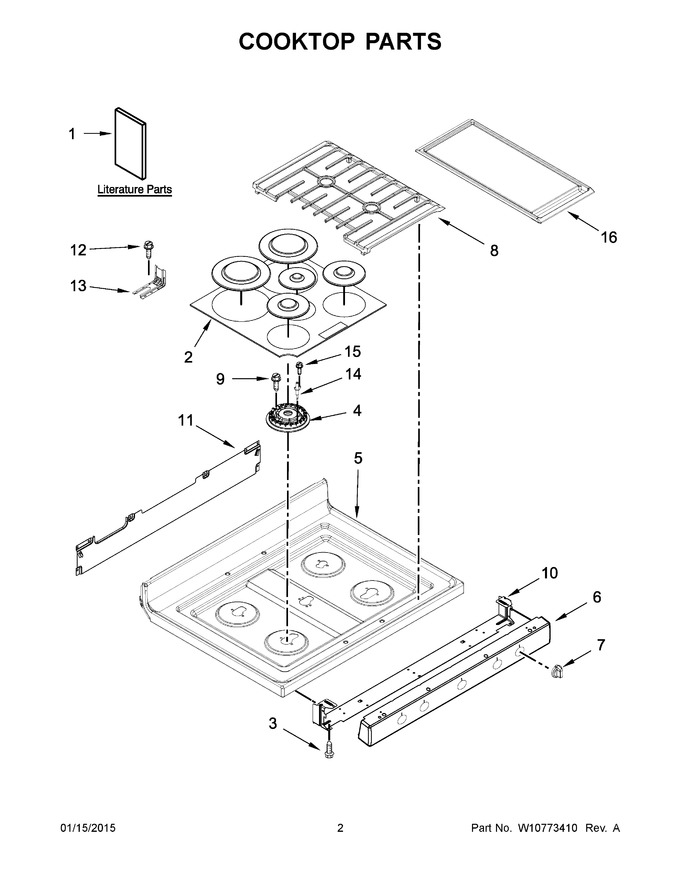

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10553363 | Instructions, Installation |
|
- | |||||
| 2 | WPW10183374 | Burner Cap, Set (black) (Replaces: W10183374) |
|
$ 200.18 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | WPW10515455 | Burner Head, Ultra Rapid (15k) (lf & Rf) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 5 | W10366730 | Cooktop (black) |
|
- | |||||
| 6 | W10330065 | Panel, Manifold (stainless) |
|
$ 131.75 | |||||
| 7 | WPW10324398 | Assembly, Control Knob (stainless) (Replaces: W10324398) |
|
$ 209.11 | |||||
| 8 | W10509552 | Grate, Set (black) |
|
$ 140.76 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 10 | W10534174 | Bracket, Manifold |
|
- | |||||
| 11 | W10530070 | Bracket, Rear Gas Cooktop |
|
- | |||||
| 12 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 13 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 14 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 15 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 16 | W10347386A | Griddle (Replaces: W10347386) |
|
$ 101.08 | |||||
| 1A | W10524723 | User Instructions |
|
- | |||||
| 1B | W10538799 | Tech Sheet (english) |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 4A | WPW10515454 | Burner Head, Semi (9.5k) (lr & Center) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 4B | WPW10515453 | Burner Head, Auxi (5k) (rr) (Replaces: W10515453) |
|
$ 99.29 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10667729 | Harness, Main |
|
- | |||||
| NI | W10738993 | Harness, Cooktop (Replaces: W10519932) |
|
$ 184.61 | |||||
| NI | WPW10701462 | Harness, Bake/broil (Replaces: W10696251) |
|
$ 100.67 | |||||
| NI | W10324946 | Harness, Wire (drawer) |
|
$ 29.03 | |||||
| NI | W10519920 | Harness, Dsi Ground |
|
$ 21.06 | |||||
| NI | 3196696 | Clip, Harness |
|
- | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 |
