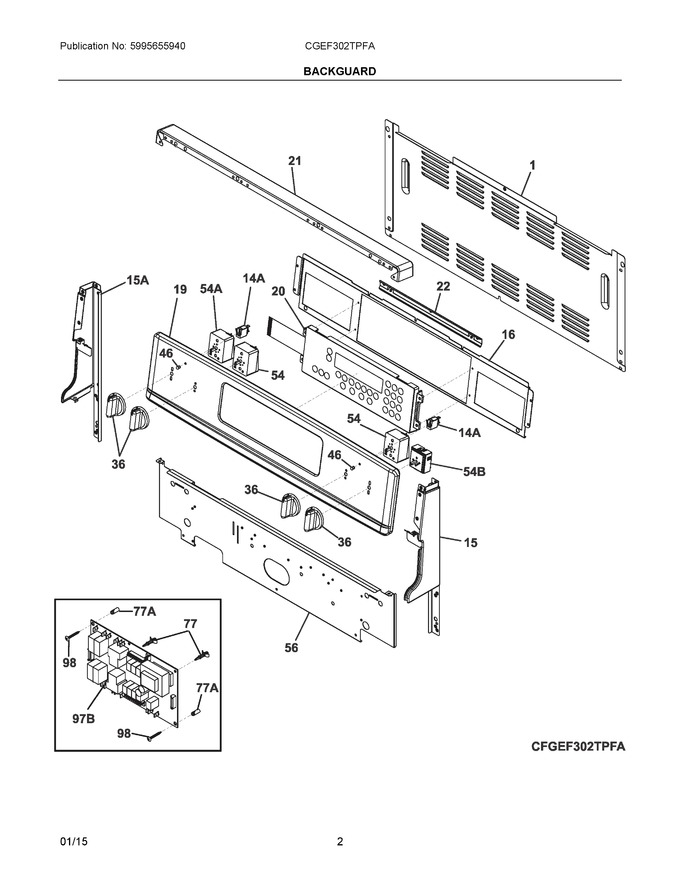

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
15	807437109		End Cap, Backguard, Black, Rh   (Replaces: 807437103)				$ 35.18
16	318949700		Bracket, Timer Support		Appelez-nous	-
19	316572446		Panel, Backguard, Stainless		Appelez-nous	-
20	139092903		Controller, Electronic, Black, W/membrane		Appelez-nous	-
21	316546605		Cap, Backguard, Black, Top   (Replaces: 316546601)				$ 74.34
22	318573700		Bracket, Control Panel		Appelez-nous	-
36	316564407		Knob, Control, Stainless, (5)				$ 121.35
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
56	807246403		Shield, Backguard, Black, Inner		Appelez-nous	-
77	316247900		Spacer, Power Board				$ 49.61
98	5304401490		Screw, 6-18 X 1, (2)		Appelez-nous	-
14A	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
15A	807437110		End Cap, Backguard, Black, Lh   (Replaces: 807437104)				$ 32.76
36A	316564509		Knob, Top Valve, Stainless, (5)				$ 146.62
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 57.42
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 98.89
77A	316114100		Spacer				$ 67.73
97B	316443947		Board, Relay, Dual Oven		Appelez-nous	-
NI	318578352		Harness, Wiring, Communication				$ 191.28
NI	807705101		Harness, Wiring, Mdl/ads/probe		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
