SELECT A DIAGRAM

01 - Cover Sheet

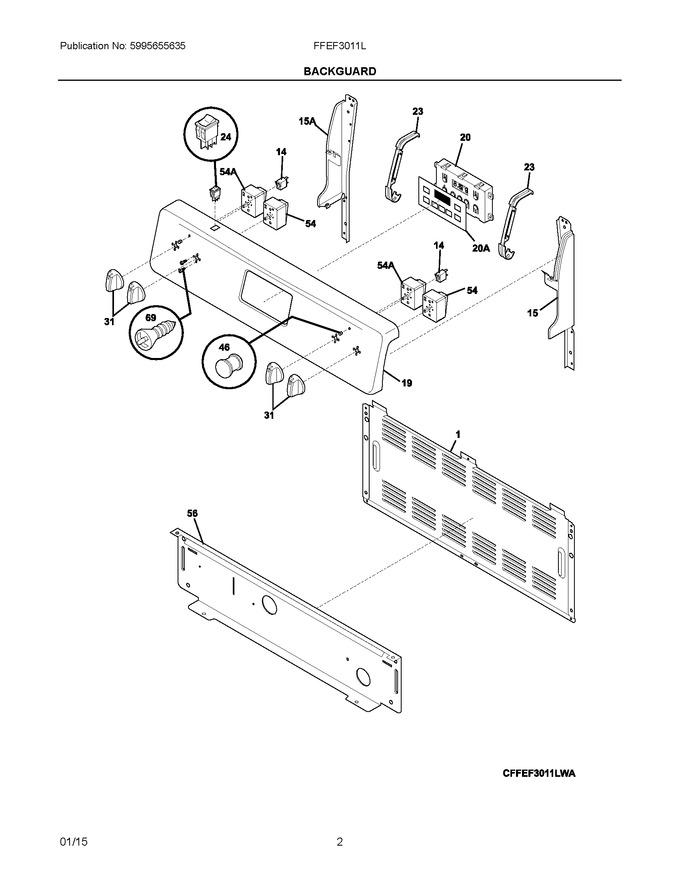

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 64.04
14	316022500		Light/lamp, Indicator (black) (125 V)			Immediately	$ 59.52
15	316411403		Support, Backguard (white) (rh)				$ 84.10
19	316541620		Panel, Backguard (white)				$ 83.48
20	5304518660		Clock/timer, Electronic, Es100   (Replaces: 316455400)			Immediately	$ 202.13
23	316441600		Bracket-clock Mtg (black)				$ 22.75
24	5304527842		Switch, Rocker (white) Oven Light   (Replaces: 316448701)			Immediately	$ 17.92
31	316543800		Knob, Control (white) (4)			Immediately	$ 30.32
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
56	316234029		Shield, Backguard, White, Inner   (Replaces: 316234012)				$ 96.86
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
15A	316411402		Support, Backguard (white) (lh)				$ 94.55
20A	316220728		Overlay, Clock (white)   (Replaces: 316220722)			Immediately	$ 43.82
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 57.42
NI	316021109		Screw, 8-18 X 0.5, (black)   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96

    View Diagram in Separate Window       Print Part List
