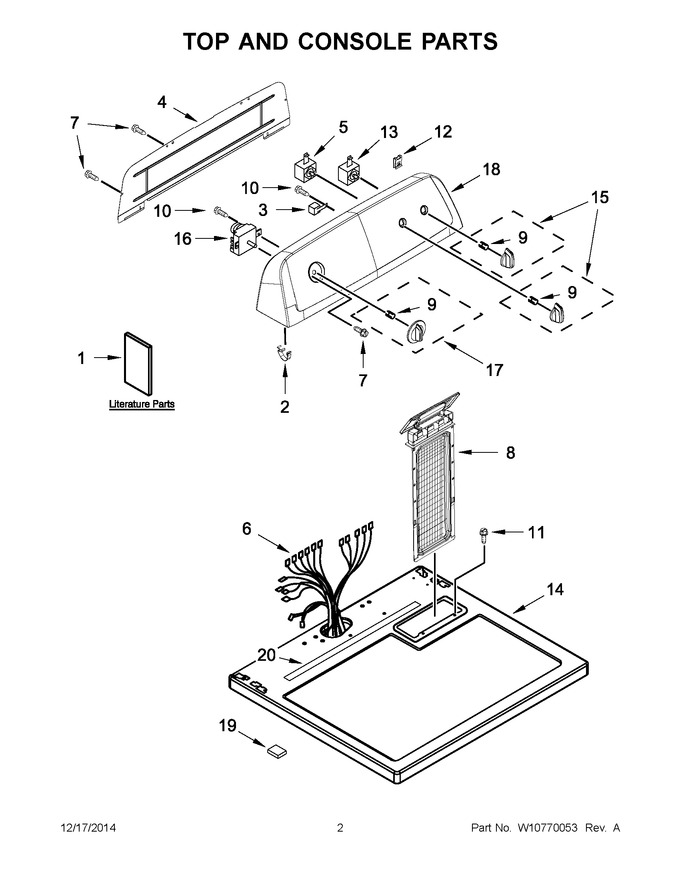

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10514185 | Installation Instructions |
|
- | |||||
| 2 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 4 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 132.39 | |||||
| 5 | W11661755 | Switch, Rotary (Replaces: W10420747) |
|
$ 34.70 | |||||
| 6 | W10450291 | Harness, Wiring |
|
- | |||||
| 7 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 8 | W11778253 | Screen, Lint (white) (Replaces: W10717210) |
|
Immediately | $ 54.63 | ||||
| 9 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 10 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 11 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 12 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 13 | WPW10446920 | Switch, Push To Start (Replaces: W10446920) |
|
Immediately | $ 88.11 | ||||
| 14 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 15 | WPW10453947 | Knob Assembly (white) (Replaces: W10453947) |
|
$ 54.76 | |||||
| 16 | WPW10436302 | Timer Assembly (60 Hz.) (Replaces: W10436302) |
|
$ 327.90 | |||||
| 17 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10711289) |
|
Immediately | $ 8.33 | ||||
| 18 | WPW10429629 | Panel Control (white) (Replaces: W10429629) |
|
$ 270.31 | |||||
| 19 | 3389682 | Spacer, Toe Panel |
|
$ 9.23 | |||||
| 20 | W10316616 | Seal, Foam |
|
$ 27.79 | |||||
| 1A | W10096991 | Use And Care Guide |
|
- | |||||
| 1B | W10185986 | Wiring Diagram |
|
- |
