SELECT A DIAGRAM
01 - Cover Sheet

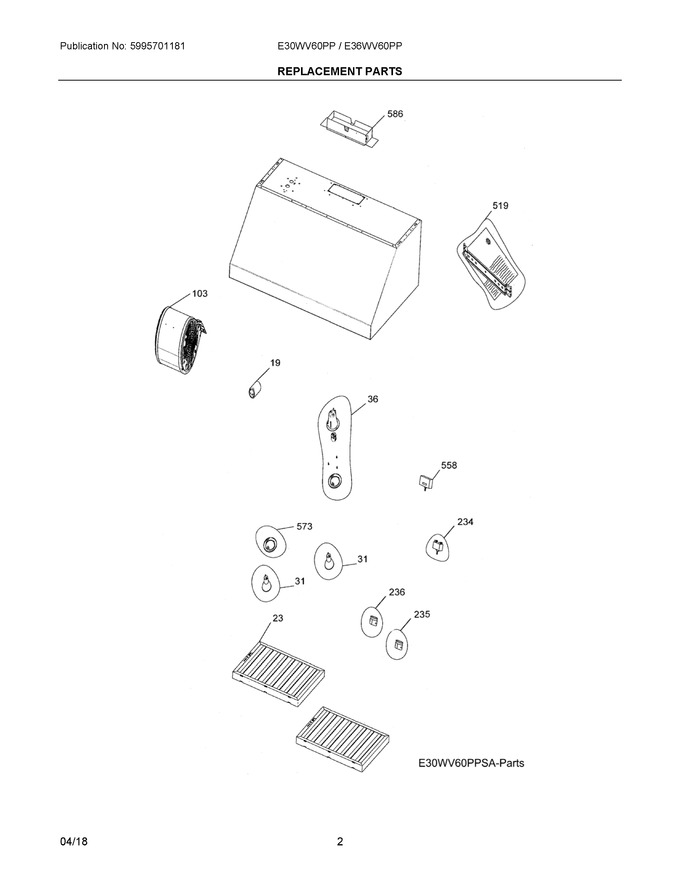

02 - Replacement Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304464261 | Capacitor |
|
$ 185.12 | |||||
| 23 | 5304492981 | Filter, Grease, 322 X 344mm, Aluminum |
|
- | |||||
| 31 | 5304482257 | Lamp, Halogen, 50 W, 120 V (Replaces: 5304466038) |
|
$ 103.67 | |||||
| 36 | 5304492982 | Lamp Holder, Socket, W/housing |
|
- | |||||
| 103 | 5304492983 | Motor Assembly, With Fan Blade |
|
$ 687.60 | |||||
| 234 | 5304487843 | Switch, Motor, Rotary |
|
- | |||||
| 235 | 5304487844 | Knob, Motor Switch |
|
- | |||||
| 236 | 5304487845 | Knob, Light Switch |
|
- | |||||
| 519 | 5304492984 | Use & Care W/instl Hardware |
|
- | |||||
| 558 | 5304487842 | Switch, Light/lamp, Rotary |
|
- | |||||
| 573 | 5304487849 | Bezel, Lamp Assembly |
|
- | |||||
| 586 | 5304490028 | Damper, Vent, 3-1/4" X 10 |
|
$ 151.68 |
