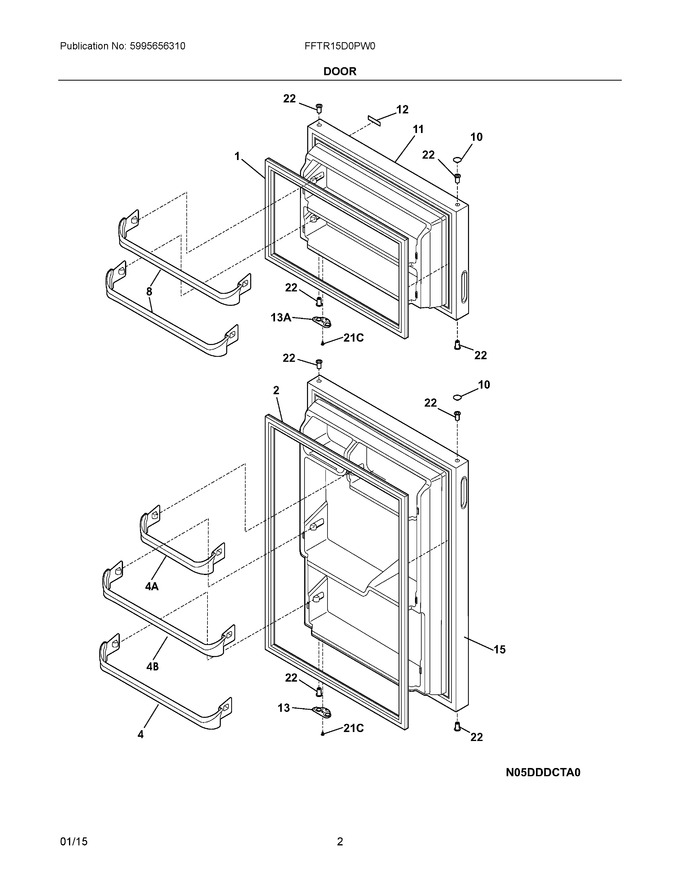

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193201 | Gasket, Freezer Door, White, Magnetic |
|
Immediately | $ 221.20 | ||||
| 2 | 242193202 | Gasket, Refrig Door, White |
|
Immediately | $ 215.27 | ||||
| 4 | 240535101 | Rack-door |
|
Immediately | $ 31.74 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 53.55 | ||||
| 10 | 240381301 | Plug-button, White, Hinge Brg Hole, (2) |
|
Immediately | $ 21.06 | ||||
| 11 | 240425101 | Panel-frzr Door, White, Complete Assy |
|
$ 337.47 | |||||
| 12 | 242062801 | Nameplate, White |
|
$ 11.65 | |||||
| 13 | 240312421 | Door Stop, White, Ref (Replaces: 240312403) |
|
$ 16.85 | |||||
| 15 | 240425201 | Panel-refr Door, White, Complete Assy |
|
$ 295.13 | |||||
| 22 | 5304507146 | Bearing-hinge, Natural Color (Replaces: 240527101) |
|
Immediately | $ 8.43 | ||||
| 13A | 240312414 | Door Stop, White, Frzr |
|
$ 21.26 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 4A | 240535301 | Rack-door, 12.03 |
|
Immediately | $ 45.69 | ||||
| 4B | 240535201 | Rack-door |
|
Immediately | $ 33.71 |
