01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)

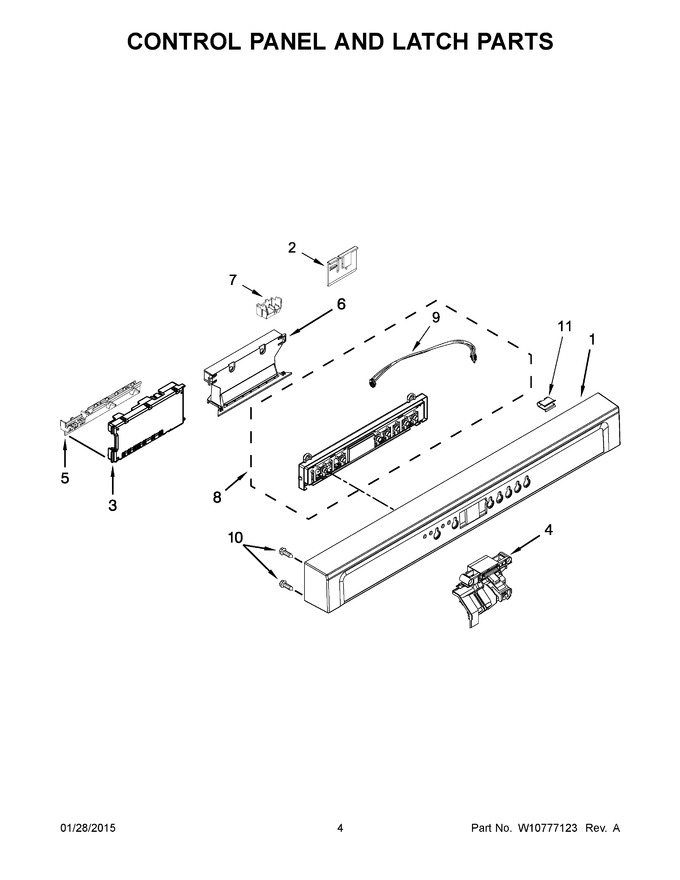

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10708648		Console Assembly (includes Insert) (black)		Appelez-nous	-
2	W11256107		Clip, Control   (Replaces: W10195237)				$ 23.27
3	W10751502		Control, Electronic   (Replaces: W10722549)				$ 191.58
4	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10653840)			Immediately	$ 34.18
5	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
6	W11568629		Handle Pocket (black)   (Replaces: W10629511)			Immediately	$ 24.85
7	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
8	W10671804		Housing Assembly, User Interface				$ 262.05
9	W11028004		Jumper, 4-wire   (Replaces: W10566903)				$ 22.37
10	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
11	W10815836		Clip, Panel   (Replaces: W10485367)				$ 8.25
1A	W10708649		Console Assembly (includes Insert) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
