Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11838891 Dishrack, Lower   (Replaces: W10525641) In-Stock Immediately $ 167.03

2 W11772521 Basket, Silverware   (Replaces: W10179397) In-Stock Immediately $ 58.70

3 W10195416V Wheel & Transport Assembly   (Replaces: W10195416) In-Stock Immediately $ 34.96


    View Diagram in Separate Window     Print Icon   Print Part List

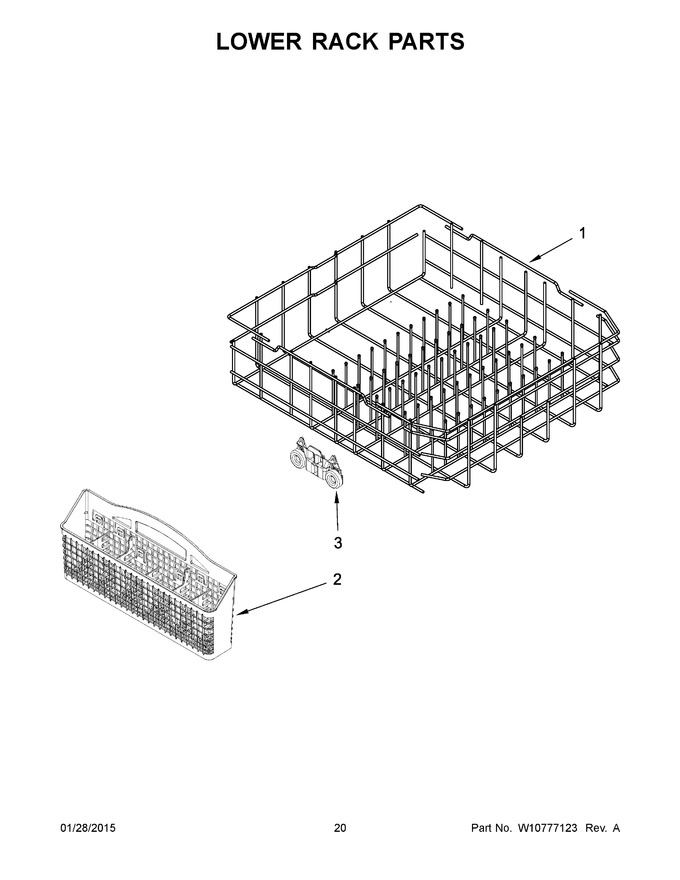

Diagram for ADB1700ADW1
