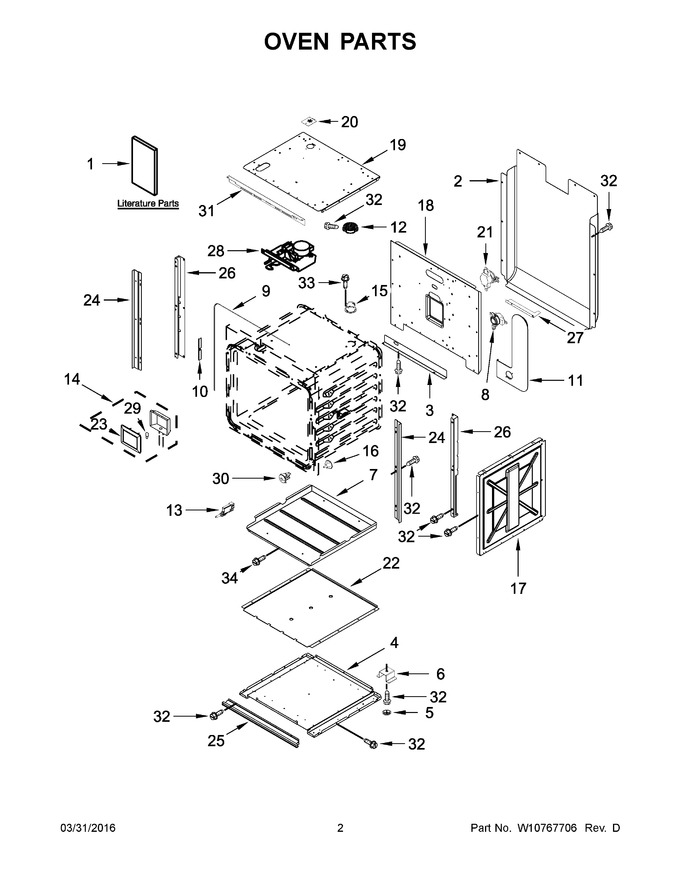

02 - Oven Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Control Panel Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Support And Turntable Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10221384		Installation Instructions		Appelez-nous	-
2	2624F043-51		Back, Main		Appelez-nous	-
3	3601F343-51		Baffle, Grease Deflector		Appelez-nous	-
4	W10280327		Panel, Bottom				$ 256.81
5	8038P035-60		Foot, Plastic				$ 20.82
6	W10213759		Support, Air Channel		Appelez-nous	-
7	3401F079-45		Pan, Hidden Bake		Appelez-nous	-
8	W10277609		Fuse, Thermal				$ 207.41
9	W10213818		Gasket				$ 63.05
10	W10176218		Retainer, Gasket				$ 9.01
11	4006W217-45		Assembly, Box Vent		Appelez-nous	-
12	8034P008-60		Screen, Smoke Eliminator				$ 25.43
13	W10286173		Switch, Micro				$ 64.24
14	W10175989		Assembly, Light				$ 106.03
15	8026P065-60		Tube, Vent				$ 21.38
16	74009408		Plug, Button   (Replaces: 7718P033-60)				$ 6.52
17	W10175995		Panel, Side		Appelez-nous	-
18	W10213724		Retainer, Rear Insulation		Appelez-nous	-
19	W10175998		Panel, Top Retainer		Appelez-nous	-
20	W10213792		Cover, Vent				$ 140.20
21	WP7403P899-60		Switch, High Limit   (Replaces: 7403P899-60)			Immediately	$ 201.43
22	W10280325		Channel, Bottom Air Bake Element		Appelez-nous	-
23	WP74004607		Lens, Light   (Replaces: W10187003)				$ 22.32
24	W10277588		Trim, Side				$ 166.52
25	W10238700		Trim, Bottom Vent (black)				$ 167.67
26	W10277423		Bracket, Reinforcement (left Hand)				$ 35.20
27	W10186984		Cover, Rear		Appelez-nous	-
28	WPW10213755		Latch, Door Lock   (Replaces: W10213755)				$ 351.50
29	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
30	W10213745		Frame, Micro Switch				$ 9.36
31	W10176018		Trim, Control Panel				$ 75.79
32	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
33	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
34	WP489464		Screw   (Replaces: W10236129)			Immediately	$ 7.83
1A	W10075750		Installation Instructions (english/french)		Appelez-nous	-
1B	W10450584		Use And Care Guide (combo)		Appelez-nous	-
1C	W10221391		Use And Care Guide (microwave)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1F	W10213735		Tech Sheet (english)		Appelez-nous	-
1G	W10213736		Tech Sheet (french)		Appelez-nous	-
25A	WPW10176036		Trim, Bottom Vent (stainless)   (Replaces: W10176036)				$ 190.94
26A	W10277424		Bracket, Reinforcement (right Hand)				$ 33.58
NI	W10213750		Insulation, Back		Appelez-nous	-
NI	W10186989		Insulation, Wrap		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10174756		Wiring Harness Parts, Harness, Main			Immediately	$ 301.21
NI	W10209123		Wiring Harness Parts, Harness, Latch W/ Meat Probe				$ 127.13
NI	W10174375		Wiring Harness Parts, Harness, Signal Extended			Immediately	$ 66.26
NI	5171P208-60		Wiring Harness Parts, Harness, Meat Probe Jack				$ 12.83
NI	4454949		Wiring Harness Parts, Holder, Fuse				$ 90.70
NI	WPW10017410		Wiring Harness Parts, Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 21.17
NI	W10277590		Wiring Harness Parts, Jumper, Secondary Thermal Fuse				$ 13.80
NI	W10176182		Wiring Harness Parts, Conduit, Combo				$ 31.37
NI	W10277613		Wiring Harness Parts, Harness, Comm Cmb Power			Immediately	$ 68.68
