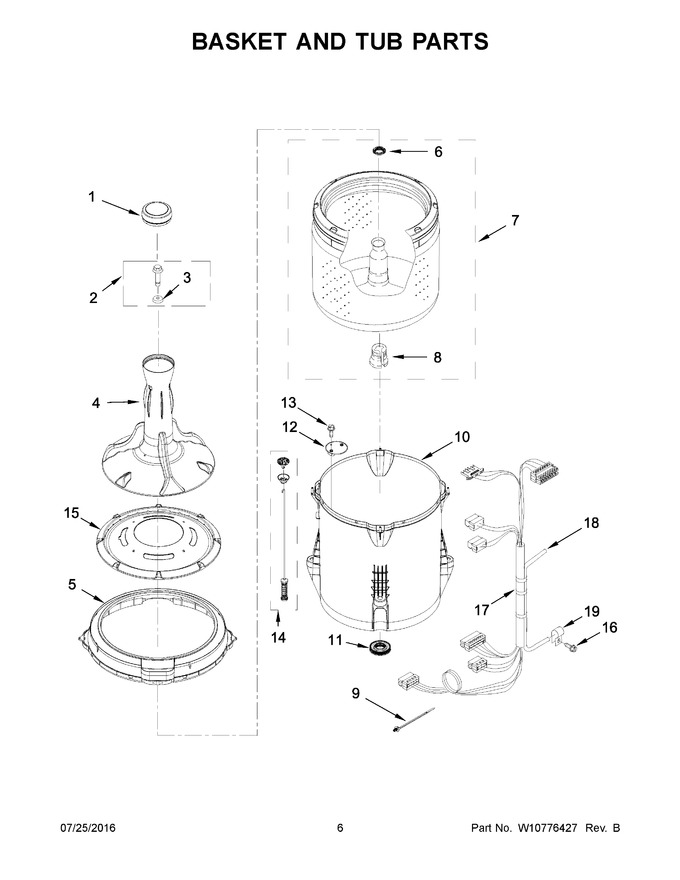

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10793634 | Dispenser Assembly (Replaces: W10777969) |
|
Immediately | $ 80.57 | ||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.30 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | W10908289 | Agitator (Replaces: W10680208) |
|
Immediately | $ 117.42 | ||||
| 5 | WPW10531289 | Ring, Tub (Replaces: W10531289) |
|
Immediately | $ 202.61 | ||||
| 6 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 7 | W10554251 | Basket Assembly |
|
Immediately | $ 432.21 | ||||
| 8 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 9 | W10339680 | Cable Tie |
|
- | |||||
| 10 | W10371566 | Tub (includes Tub Seal) (Replaces: W10238320) |
|
$ 356.34 | |||||
| 11 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 93.50 | ||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 65.26 | |||||
| 13 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 14 | W10780045 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821951) |
|
Immediately | $ 114.26 | ||||
| 15 | W11085570 | Base Shield (Replaces: W10723583) |
|
$ 40.57 | |||||
| 16 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 17 | W11025584 | Harness, Lower (Replaces: W10678683) |
|
$ 191.37 | |||||
| 18 | W10846364 | Hose, Pressure Switch (Replaces: W10520039) |
|
Immediately | $ 25.81 | ||||
| 19 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 |
