01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

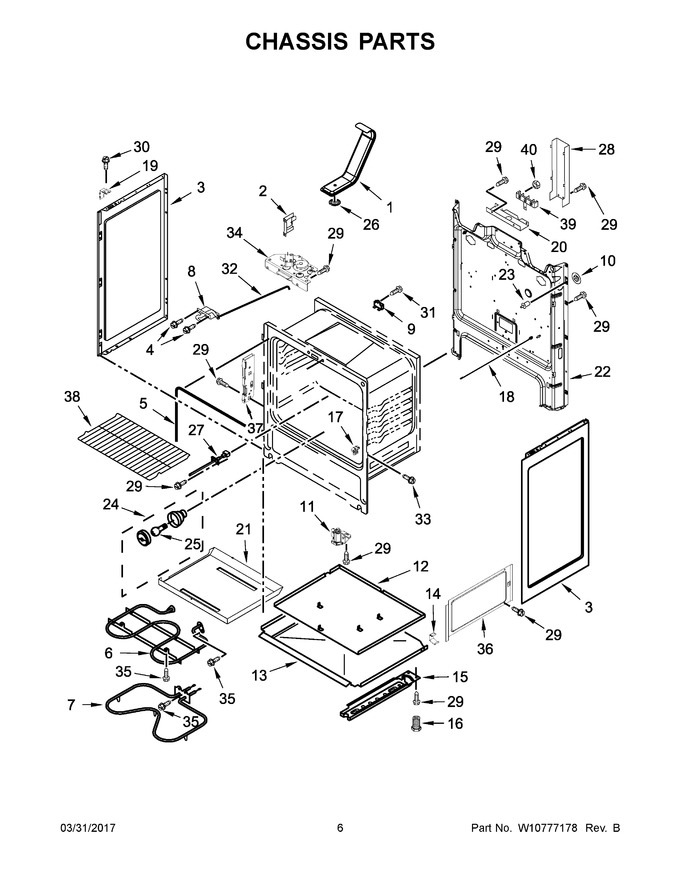

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 263.00 | ||||
| 2 | W10404688 | Clip, Oven Support |
|
$ 17.69 | |||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10575396) |
|
$ 148.71 | |||||
| 4 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 5 | W11542153 | Seal, Door (Replaces: W10658354) |
|
Immediately | $ 50.20 | ||||
| 6 | WP9755770 | Element, Bake (Replaces: 9755770) |
|
Immediately | $ 117.66 | ||||
| 7 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 154.62 | ||||
| 8 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 256.36 | |||||
| 9 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 10 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 | ||||
| 11 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | W10134125 | Shield, Heat |
|
$ 159.37 | |||||
| 13 | W10134121 | Tray, Insulation |
|
$ 44.75 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 18 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 19 | W10183541 | Clip, Spring Steel |
|
- | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | W10183712 | Tray, Hidden Bake |
|
$ 243.95 | |||||
| 22 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 23 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 144.44 | ||||
| 24 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 87.01 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 26 | 9761301 | Screen, Vent |
|
$ 147.90 | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 28 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 29 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 30 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 31 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 32 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 33 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 34 | WPW10107820 | Assembly, Door Latch (rear) (Replaces: W10107820) |
|
$ 309.55 | |||||
| 35 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 36 | W10450380 | Retainer, Insulation |
|
- | |||||
| 37 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 38 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 39 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 40 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 15A | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 3A | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| NI | W10646923 | Card, Insulator |
|
$ 19.57 | |||||
| NI | W10326347 | Insulation, Back |
|
- | |||||
| NI | W11161831 | Insulation, Wrap (Replaces: W10774939) |
|
Immediately | $ 116.41 | ||||
| NI | W11684918 | Insulation, Flue (Replaces: W10333344) |
|
Immediately | $ 35.48 |
