01 - Cover Sheet

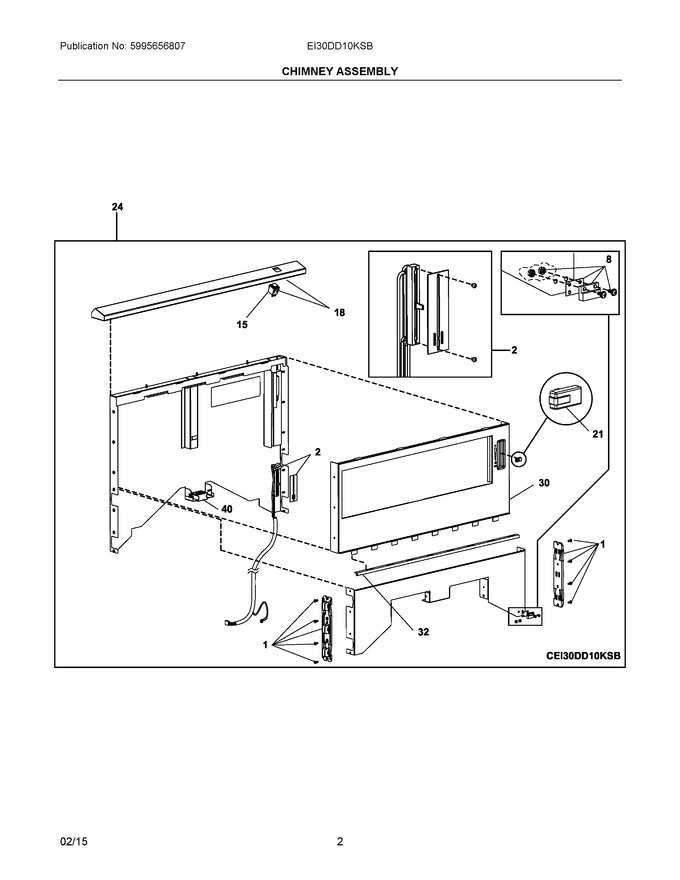

02 - Chimney Assembly
03 - Body/motor Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304500762 | Guide Assy, Shoe Kit |
|
- | |||||
| 2 | 5304487429 | Switch Kit, Blower, W/harness, & Screws |
|
- | |||||
| 8 | 5304487435 | Magnet Kit, Reed, W/instructions, & Screws |
|
- | |||||
| 15 | 5304487440 | Switch, Lift |
|
- | |||||
| 18 | 5304487443 | Trim Assy, Top, 30", W/switch |
|
- | |||||
| 21 | 5304487526 | Knob, Fan Control |
|
- | |||||
| 24 | 5304500766 | Chimney Assy, Complete, 30 |
|
- | |||||
| 30 | 5304487457 | Panel, Chimney, 30 |
|
- | |||||
| 32 | 5304487459 | Seal Kit, Chimney, 30 |
|
- | |||||
| 40 | 5304487525 | Nut, Drive |
|
- |
