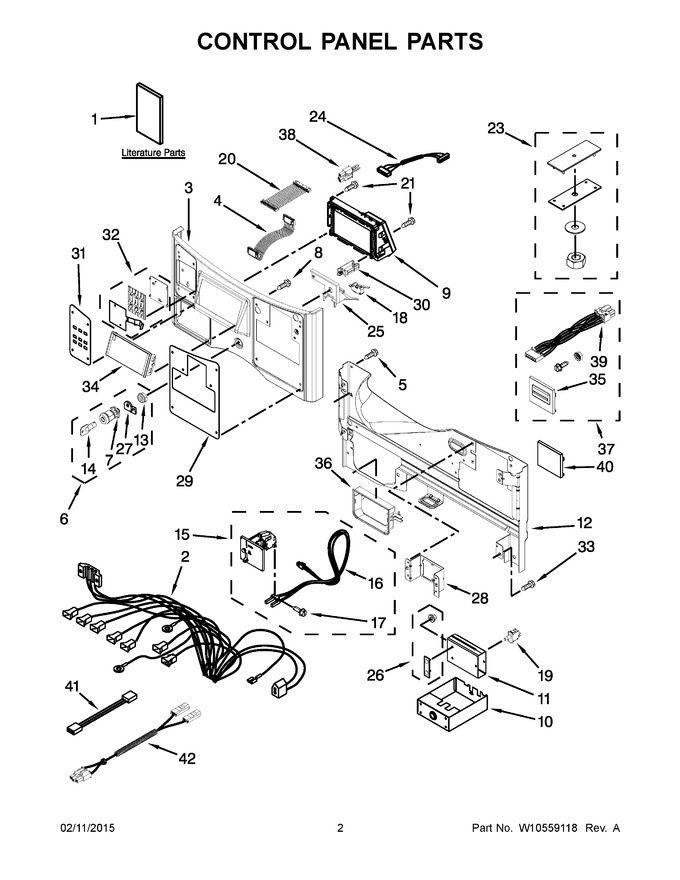

01 - Cover Sheet


02 - Control Panel Parts


03 - Dryer Cabinet Parts


04 - Bulkhead And Blower Parts


05 - Dryer Door Parts


06 - Washer Door Parts


07 - Washer Cabinet Parts


08 - Dispenser Parts


09 - Tub And Basket Parts


10 - Pump And Motor Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10045641		Instructions, Installation		Appelez-nous	-
2	W10555302		Harness, Main		Appelez-nous	-
3	W11181684		Assembly, Panel Pd - Coin Drop   (Replaces: W10198200)		Appelez-nous	-
4	W10167484		Wire Assembly, Exp Connection		Appelez-nous	-
5	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
6	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 145.97
7	W11395752		Nut, Hex   (Replaces: W10139762)				$ 13.69
8	3400408		Screw		Appelez-nous	-
9	WPW10657973		Assembly, Techbox Pd - Coin Drop   (Replaces: W10657973)				$ 729.32
10	W11204019		Box, Coin   (Replaces: W10133248)				$ 163.85
11	W11204020		Assembly, Vault Body   (Replaces: W10133258)				$ 421.72
12	W11200173		Bracket, Console   (Replaces: W10198369)		Appelez-nous	-
13	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 145.97
14	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 22.10
15	WPW10133242		Assembly, Single Coin Drop   (Replaces: W10133242)				$ 126.51
16	WPW10247389		Coin Optic Sensor Assembly (white)   (Replaces: W10247389)			Immediately	$ 121.70
17	WP3395530		Screw   (Replaces: W10142655)				$ 8.57
18	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 43.26
19	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 25.11
20	W10167482		Wire Assembly, Main Connection		Appelez-nous	-
21	WPW10273971		Screw   (Replaces: W10192860)			Immediately	$ 7.55
23	W11416034		Kit-coin Box, Security (to Be Serviced As A Kit)   (Replaces: W10169579)				$ 132.30
24	W11700545		Harness, Wire Dryer Ccu To Uic   (Replaces: W10242897)				$ 32.68
25	W10198375		Console, Support		Appelez-nous	-
26	W10159907		Assembly, Mounting Strap Weld		Appelez-nous	-
27	W11165684		Cam, Locking   (Replaces: W10133266)				$ 9.57
28	W10198322		Bracket Pd Coin Drop & Pn Non-coin		Appelez-nous	-
29	W10198334		Fascia Pd - Coin Drop				$ 129.18
30	W10129069		Clip, Wire		Appelez-nous	-
31	W10198284		Buttons, Fascia				$ 195.55
32	WPW10198198		Assembly, Button Set   (Replaces: W10198198)				$ 243.86
33	WPW10131119		Screw   (Replaces: W10386302)				$ 7.30
34	W10198390		Display, Window				$ 86.45
35	WPW10198367		Bezel   (Replaces: W10198367)				$ 24.53
36	W10198345		Collar, Dispenser		Appelez-nous	-
37	W11519983		Card Reader, Conversion Kit   (Replaces: W10198451)				$ 78.10
38	W11129439		Jumper, Switch Service/vault   (Replaces: W10133282)				$ 17.66
39	WPW10239515		Harness, Card Reader   (Replaces: W10239515)				$ 155.18
40	W10198366		Cover Pd/pn		Appelez-nous	-
41	W10342214		Cable Set, Ui To Ccu Communication				$ 73.16
42	W10300896		Wire Harness, Vault Switch		Appelez-nous	-
1A	W10335470		Instructions, Installation Card Reader		Appelez-nous	-
28A	WPW10198323		Bracket Pr - Card Reader   (Replaces: W10198323)				$ 25.90
29A	W10198336		Fascia Pr - Card Reader				$ 283.20
3A	W11181684		Assembly, Panel Pr - Card Reader   (Replaces: W10198201)		Appelez-nous	-
9A	WPW10657974		Assembly, Techbox Pr - Card Reader   (Replaces: W10657974)				$ 729.32
