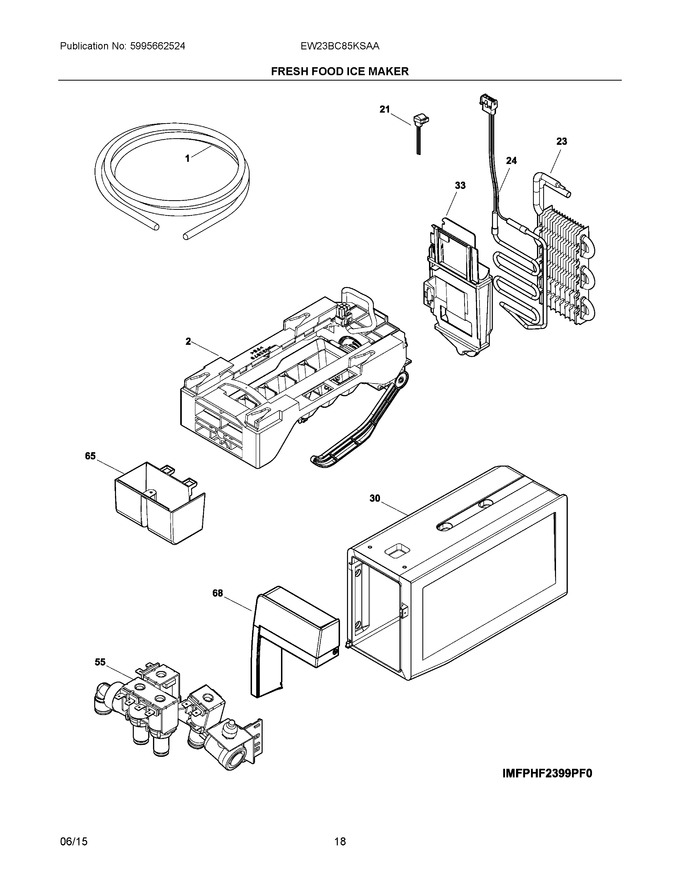

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet, 5/16 - 59", Yellow, Cd |
|
$ 22.84 | |||||
| 2 | 243297613 | Ice Maker, Complete, 115 V (Replaces: 243297606) |
|
Immediately | $ 130.73 | ||||
| 21 | 5304469378 | Ice Stripper |
|
$ 18.11 | |||||
| 23 | 5304469392 | Screw, Mold-to-support, (2) |
|
- | |||||
| 24 | 5304469382 | Lever Arm |
|
$ 22.89 | |||||
| 30 | 242093501 | Cover, Icmkr & Bucket (Replaces: 242142202) |
|
$ 187.43 | |||||
| 31 | 5304469389 | Spacer-switch |
|
- | |||||
| 32 | 5304469400 | Plate-valve Switch |
|
- | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 271.94 | ||||
| 65 | 242145902 | Cover-wiring |
|
- | |||||
| 66 | 242060701 | Bracket-ice Maker, Shut Off Arm |
|
$ 12.77 | |||||
| 68 | 242095002 | Cover, -front, Bucket Trim |
|
$ 105.36 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 21.26 | |||||
| NIA | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 19.01 | ||||
| NIA | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NIA | 218976425 | Tube-water Inlet, 51.00", Brown/tan |
|
$ 112.61 | |||||
| NIB | 218976428 | Tube-water, 5/16 - 51", Natural |
|
$ 18.27 | |||||
| NIC | 5303918571 | Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403) |
|
$ 182.49 | |||||
| NID | 241920106 | Tube-water, Assembly, 5/16 - 54", Green, Ice Maker Fill, W/extension (Replaces: 241920104) |
|
Immediately | $ 67.41 | ||||
| NIE | 241964707 | Tube-water, 1/4 - 36", Green |
|
Immediately | $ 20.48 | ||||
| NIF | 241965906 | Tube-water, 5/16 - 67", Natural |
|
Immediately | $ 26.78 |
