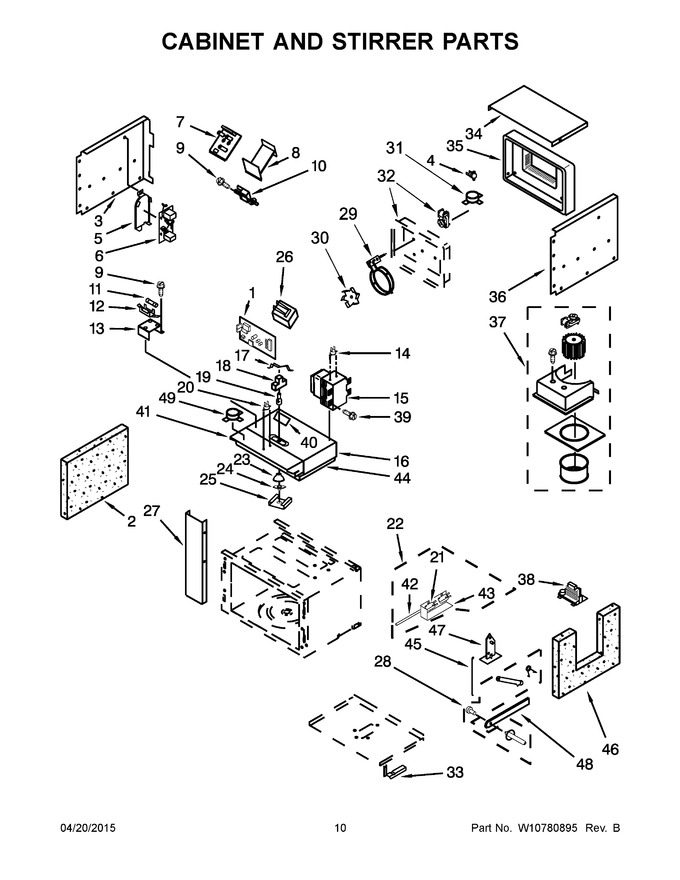

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10642016 | Appliance Manager, Microwave |
|
- | |||||
| 2 | N/P | Insulation, Side (not Serviced) |
|
- | |||||
| 3 | N/P | Panel, Side (not Serviced) |
|
- | |||||
| 4 | W11607085 | Thermostat (Replaces: W10120223) |
|
Immediately | $ 44.42 | ||||
| 5 | N/P | Holder, Noise Filter (not Serviced) |
|
- | |||||
| 6 | W11398764 | Filter, Noise (Replaces: W10692851) |
|
Immediately | $ 204.55 | ||||
| 7 | W10578541 | Control, Electric Converter |
|
$ 193.10 | |||||
| 8 | N/P | Holder, Control (not Serviced) |
|
- | |||||
| 9 | 461967825321 | Screw (Replaces: W10131249) |
|
$ 12.13 | |||||
| 10 | 461967842541 | Thermoactuator |
|
$ 72.29 | |||||
| 11 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 18.28 | ||||
| 12 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 87.31 | |||||
| 13 | W10130897 | Bracket, Support |
|
- | |||||
| 14 | W11233913 | Thermostat (Replaces: 461967846741) |
|
Immediately | $ 156.08 | ||||
| 15 | W11346197 | Magnetron (Replaces: 461967847321) |
|
Immediately | $ 271.25 | ||||
| 16 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 17 | W10465869 | Spring, Lamp |
|
Immediately | $ 103.76 | ||||
| 18 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 77.82 | |||||
| 19 | W10886919 | Lamp, Halogen (Replaces: 241954900069) |
|
Immediately | $ 32.22 | ||||
| 20 | W11568584 | Thermostat (Replaces: W10389447) |
|
$ 44.56 | |||||
| 21 | W10211972 | Switch (Replaces: W10330566) |
|
Immediately | $ 52.40 | ||||
| 22 | W11033422 | Assembly, Interlock Switch (Replaces: 461968971512) |
|
Immediately | $ 159.55 | ||||
| 23 | 423107022541 | Reflector (Replaces: 4375320) |
|
$ 85.90 | |||||
| 24 | W11193483 | Lens, Lamp (Replaces: 4375318) |
|
Immediately | $ 104.82 | ||||
| 25 | W11440819 | Clip, Spring (Replaces: W10120231) |
|
$ 23.00 | |||||
| 26 | W11238401 | Transformer, Light (20v) (Replaces: 461967848621) |
|
Immediately | $ 360.89 | ||||
| 27 | N/P | Trim, Side (not Serviced) |
|
- | |||||
| 28 | WPW10128850 | Assembly, Sliding Arm (Replaces: W10128850) |
|
Immediately | $ 142.08 | ||||
| 29 | WPW10493735 | Heater, Convection Element (Replaces: 461967848711) |
|
Immediately | $ 110.49 | ||||
| 30 | W11512064 | Fan, Convection (Replaces: 461967001792) |
|
Immediately | $ 171.35 | ||||
| 31 | W11607085 | Sensor, Convection (Replaces: 423107845441) |
|
Immediately | $ 44.42 | ||||
| 32 | 461969000371 | Motor, Convection Fan |
|
Immediately | $ 191.75 | ||||
| 33 | W10874474 | Hinge, Door (Replaces: 461968979601) |
|
Immediately | $ 63.12 | ||||
| 34 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 35 | N/P | Panel, Rear (not Serviced) |
|
- | |||||
| 36 | N/P | Panel, Side (not Serviced) |
|
- | |||||
| 37 | W11344874 | Assembly, Cooling Fan (Replaces: 461968969271) |
|
Immediately | $ 191.74 | ||||
| 38 | W10217711 | Inverter (Replaces: W10468206) |
|
Immediately | $ 289.63 | ||||
| 39 | 461967825971 | Screw (Replaces: W10130890) |
|
- | |||||
| 40 | N/P | Hatch, Top (not Serviced) |
|
- | |||||
| 41 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 42 | WPW10120235 | Rod, Release (Replaces: W10120235) |
|
Immediately | $ 7.32 | ||||
| 43 | WP8205683 | Holder, Switch (Replaces: 8205683) |
|
Immediately | $ 99.41 | ||||
| 44 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 45 | W11700292 | Spring, Torsion (Replaces: 8205704) |
|
$ 72.30 | |||||
| 46 | N/P | Insulation, Side (not Serviced) |
|
- | |||||
| 47 | W11684510 | Support (Replaces: 461967750494) |
|
Immediately | $ 15.52 | ||||
| 48 | W11214480 | Arm, Sliding (Replaces: 461967750483) |
|
$ 100.54 | |||||
| 49 | W10460457 | Sensor, Humidity |
|
Immediately | $ 132.65 | ||||
| NI | 461967903621 | Miscellaneous Parts, Harness, Turntable And Fan |
|
- |
