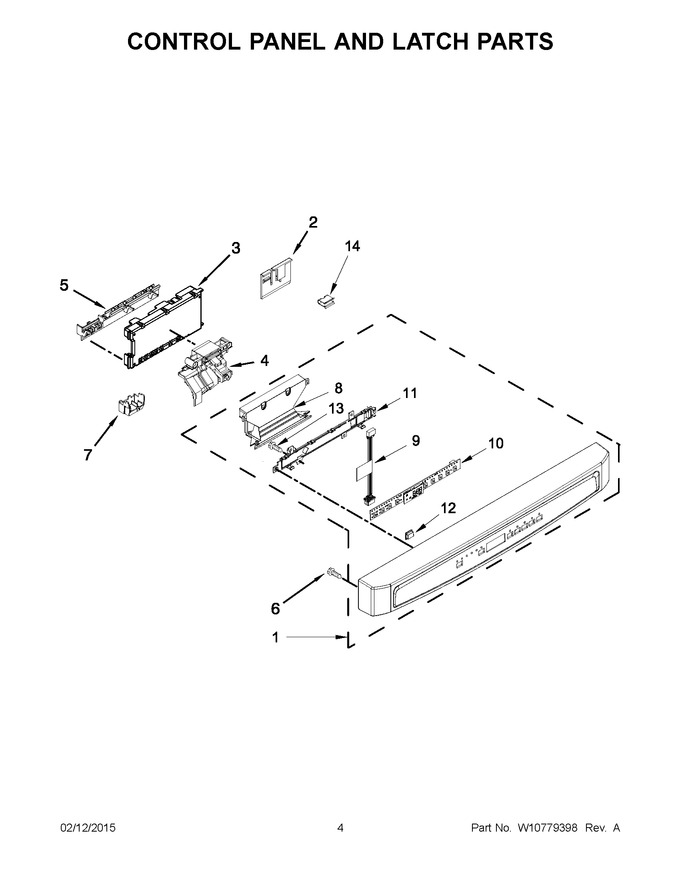

03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11106769		Console Assembly (black)   (Replaces: W10562076)				$ 358.19
2	W11256107		Clip, Control   (Replaces: W10195237)				$ 23.27
3	W10737607		Control, Electronic   (Replaces: W10735803)				$ 298.58
4	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10653840)			Immediately	$ 34.18
5	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
6	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
7	W10783730		Box, Connector   (Replaces: W10756253)				$ 31.41
8	W10562087		Handle Pocket (black)				$ 39.99
9	W11028004		Jumper, 4-wire   (Replaces: W10566903)				$ 22.37
10	W10619840		User Interface				$ 258.71
11	W10636690		Cover, User Interface				$ 33.98
12	W10685076		Button, Console (black)   (Replaces: W10613680)				$ 23.81
13	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
14	W10815836		Clip, Panel   (Replaces: W10692204)				$ 8.25
12A	W10685079		Button, Console (white)   (Replaces: W10613681)			Immediately	$ 23.81
12B	W10685079		Button, Console (grey)   (Replaces: W10620464)			Immediately	$ 23.81
1A	W10838329		Console Assembly (white)   (Replaces: W10562077)				$ 383.90
1B	WPW10562079		Console Assembly (stainless)   (Replaces: W10562079)				$ 435.69
8A	W10562088		Handle Pocket (white)		Appelez-nous	-
8B	W10562090		Handle Pocket (grey)				$ 38.64
