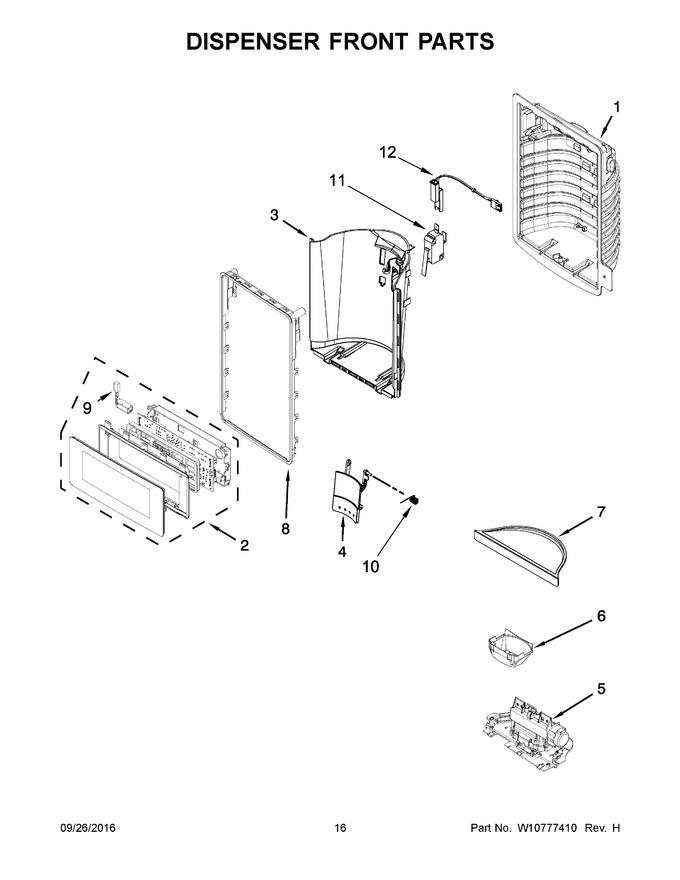

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11330971 | Assembly, User Interface (black) (Replaces: W10852741) |
|
Immediately | $ 314.36 | ||||
| 3 | W11109614 | Wall, Dispenser False (black) (Replaces: W10654549) |
|
$ 69.38 | |||||
| 4 | W11109510 | Assembly, Pad (black) (Replaces: W10663646) |
|
$ 91.53 | |||||
| 5 | W11572058 | Assembly, Seperator (Replaces: W10654548) |
|
Immediately | $ 76.02 | ||||
| 6 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
$ 23.94 | |||||
| 7 | W10909034 | Tray, Drip (black) (Replaces: W10654552) |
|
Immediately | $ 67.85 | ||||
| 8 | W11125932 | Ring, Trim (chrome) (Replaces: W10654551) |
|
$ 91.21 | |||||
| 9 | W11290115 | Assembly, Led (Replaces: W10470750) |
|
$ 84.45 | |||||
| 10 | W11109505 | Spring, Torsion (Replaces: W10663682) |
|
Immediately | $ 26.03 | ||||
| 11 | W11087492 | Switch, Limit (Replaces: W10403752) |
|
Immediately | $ 39.29 | ||||
| 12 | W11238426 | Assembly, Switch Jumper Wire (Replaces: W10712476) |
|
$ 165.12 |
