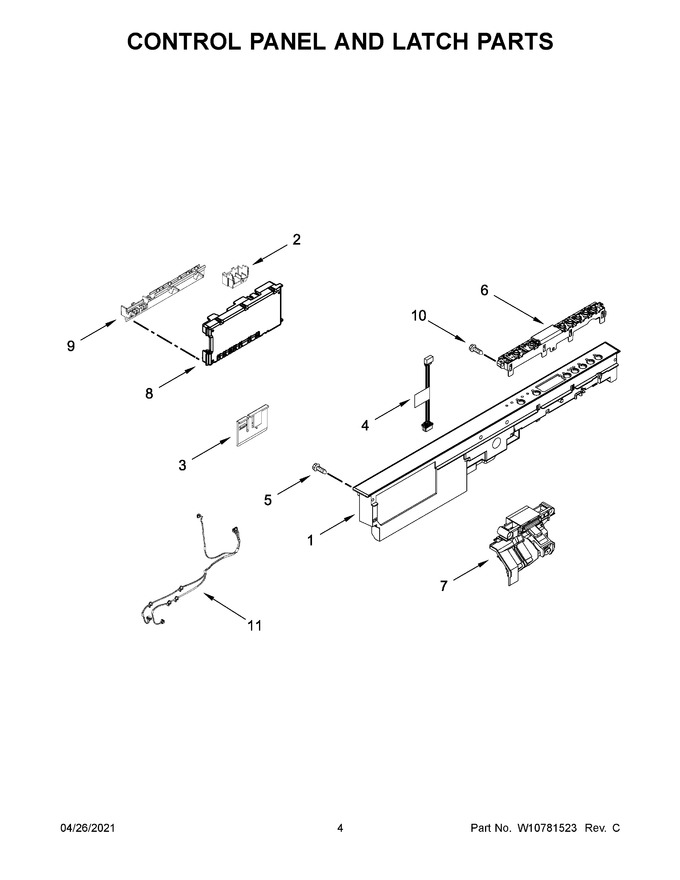

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10644261 | Console Assembly (black) |
|
$ 389.06 | |||||
| 2 | W10783730 | Box, Connector (Replaces: W10756253) |
|
$ 31.41 | |||||
| 3 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 4 | W11028004 | Jumper, 4-wire (Replaces: W10566903) |
|
$ 22.37 | |||||
| 5 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 6 | W10629151 | Housing Assembly, User Interface |
|
$ 252.40 | |||||
| 7 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 8 | W10854221 | Control, Electronic (Replaces: W10851343) |
|
$ 283.77 | |||||
| 9 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 10 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 11 | W10751781 | Jumper, Latch |
|
$ 23.31 | |||||
| 1A | W10644262 | Console Assembly (white) |
|
$ 388.95 | |||||
| 1B | W10859914 | Console Assembly (stainless) (Replaces: W10644263) |
|
$ 411.66 |
