SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts

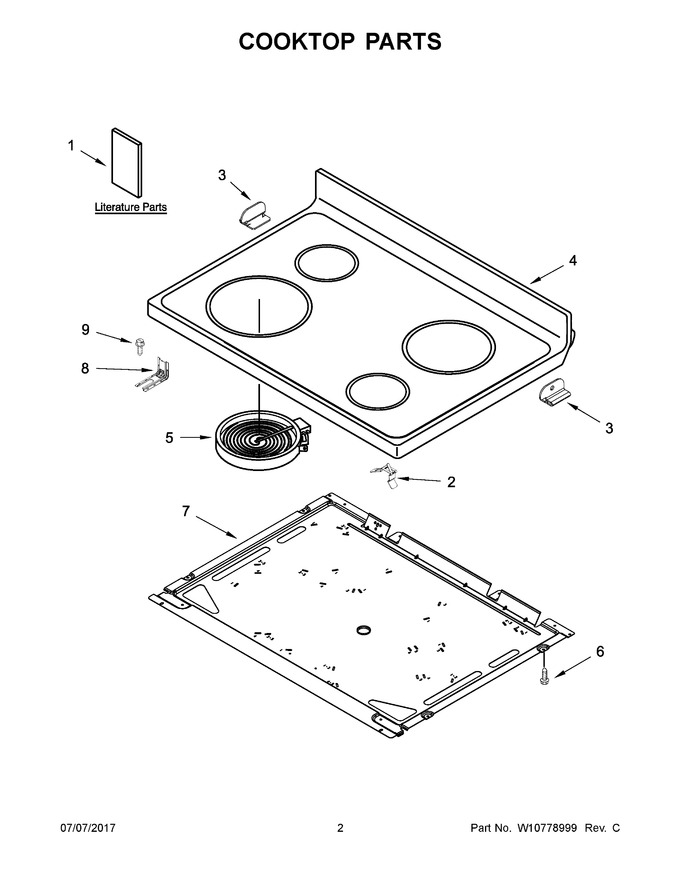

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W10472020		Cooktop (white)   (Replaces: W10380656)			Immediately	$ 655.64
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W10719734		Use And Care Guide, English		Appelez-nous	-
1B	W10432689		Tech Sheet (english)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
4A	W10245805		Cooktop (black)   (Replaces: W10380657)				$ 553.83
4B	W10472029		Cooktop (biscuit)   (Replaces: W10411864)				$ 512.44
5A	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
5B	W11047722		Element (2500w) (right Front)   (Replaces: W10248262)			Immediately	$ 132.46
NI	W10183541		Clip, Spring Steel		Appelez-nous	-
NI	W11134602		Harness, Cooktop (right)   (Replaces: W10844298)				$ 191.71
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11219898		Harness, Main   (Replaces: W10683158)		Appelez-nous	-
NI	W11172524		Harness, Sensor   (Replaces: W10084660)				$ 217.19
NI	W11825098		Harness, Hidden Bake   (Replaces: W10465644)				$ 86.33
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W11134601		Harness, Cooktop (left)   (Replaces: W10844296)				$ 192.66

    View Diagram in Separate Window       Print Part List
