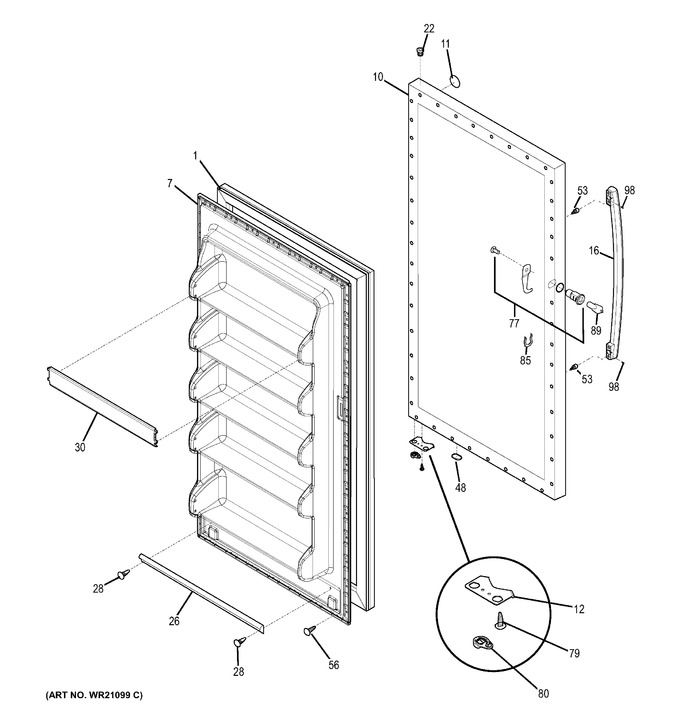

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Door
2 - Cabinet
3 - Machine Compartment
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR24X23854 | Gasket, White Door |
|
- | |||||
| 7 | WR77X23563 | Panel-inner Door,frzr |
|
- | |||||
| 10 | WR78X23564 | Panel-outer Door,white |
|
- | |||||
| 11 | WR04X23538 | Nameplate |
|
- | |||||
| 12 | WR02X23525 | Door Stop |
|
- | |||||
| 16 | WR12X23532 | Handle,ge ,metal |
|
- | |||||
| 22 | WR02X23506 | Bearing,hinge ,black ,to |
|
- | |||||
| 26 | WR14X23558 | Gasket,secondary |
|
- | |||||
| 28 | 5304472186 | Clip, Panel Mtg (Replaces: WR01X10916) |
|
$ 11.57 | |||||
| 30 | WR17X23565 | Rack,door |
|
- | |||||
| 48 | WR02X23542 | Plug-button,door Base |
|
- | |||||
| 53 | WR01X11042 | Screw Hourglass |
|
- | |||||
| 56 | WR01X10797 | Screw,ph Truss Head ,8-1 |
|
- | |||||
| 77 | WR05X10038 | Lock Assy |
|
- | |||||
| 79 | WR02X12989 | Screw, Door Stop Mtg, Fh |
|
- | |||||
| 80 | WR02X23518 | Closer,bearing Hinge |
|
- | |||||
| 85 | WR01X10870 | Clip, Spring |
|
- | |||||
| 89 | WR05X10005 | Key |
|
- | |||||
| 98 | WG03A00456 | Screw-set (Replaces: WR01X10922) |
|
$ 64.18 |
