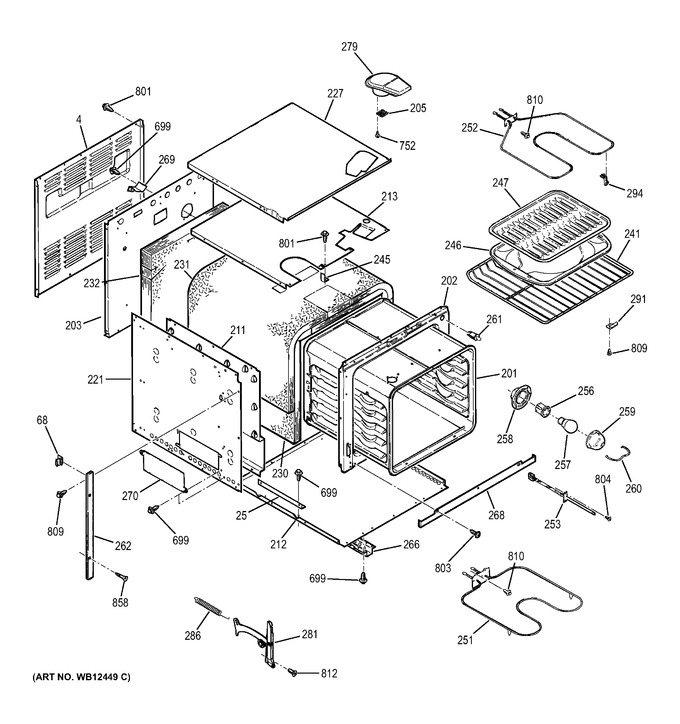

2 - Body Parts
3 - Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB63M45 | Cabinet Back |
|
- | |||||
| 25 | WB2M41 | Retainer Ins Bracket |
|
- | |||||
| 68 | WB2K5177 | Frt Trim Spacer |
|
- | |||||
| 201 | WB63T10012 | Oven Body |
|
- | |||||
| 202 | WB63T10013 | Front Frame |
|
- | |||||
| 203 | WB63K5118 | Back Main |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 211 | WB2K5180 | Ins Ov Side Retainer |
|
- | |||||
| 212 | WB63K5116 | Bottom Cab |
|
- | |||||
| 213 | WB2K5256 | Top Insulation Retnr-upp |
|
- | |||||
| 221 | WB63K5117 | Side Cabinet |
|
- | |||||
| 227 | WB2K5173 | Ins Cabinet Top Retainer |
|
- | |||||
| 230 | WB35K5048 | Insulation-wrapper-inner |
|
- | |||||
| 231 | WB35K5068 | Insulation Wrpr Otr |
|
- | |||||
| 232 | WB35K5057 | Insulation-back/btm Uppe |
|
- | |||||
| 241 | WB48X218 | Oven Rack |
|
- | |||||
| 245 | WB2M30 | Scroll Bracket |
|
- | |||||
| 246 | WB48T10006 | Broil Pan (261d656p010) |
|
- | |||||
| 247 | WB48T10005 | Wb48t10001 |
|
- | |||||
| 251 | WB44K5013 | Bake Element-upper |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 103.82 | |||||
| 253 | WB21X5347 | Wb21x5301 |
|
- | |||||
| 256 | WB8X303 | Ov Lamp Holder |
|
- | |||||
| 257 | BUY LOCAL | Bulb Oven Li |
|
- | |||||
| 258 | WG02F04577 | Oven Light Cup (Replaces: WB02T10037) |
|
$ 28.58 | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | 318394803 | Jamb Switch (Replaces: WB24K5061) |
|
Immediately | $ 44.23 | ||||
| 262 | WB7K5125 | Vertical Side Trim-white |
|
- | |||||
| 262 | WB7K5497 | Vent Trm-stainless Steel |
|
- | |||||
| 266 | WB2X9634 | Bottom Channel |
|
- | |||||
| 268 | WB7K5127 | Lo Frt Frame Trim-wht |
|
- | |||||
| 269 | WB2K5164 | Cup Light Support |
|
- | |||||
| 270 | WB2X9642 | Cover Plate |
|
- | |||||
| 279 | WB38K5028 | Wb38k5051 |
|
- | |||||
| 281 | WB14K5006 | Hinge Ov Dr Rt |
|
- | |||||
| 281 | WB14K5007 | Hinge Ov Dr Lt |
|
- | |||||
| 286 | WB9K5017 | Oven Door Spring |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 803 | WB1K5163 | Screw-wht |
|
- | |||||
| 803 | WB1K5162 | Screw |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 812 | WB1K5191 | Screw Flat Zinc 10-32 |
|
- | |||||
| 858 | WB1X1413 | Wood Screw-blk |
|
- |
