1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly

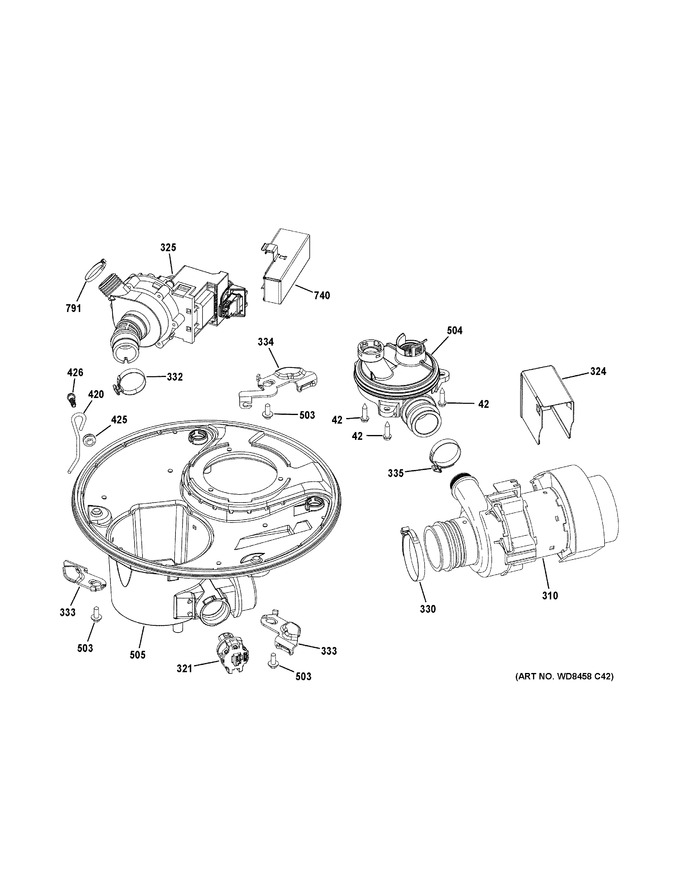

5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X22736 | Scr10 - 16 Ab Hxw 3/4 Ss |
|
- | |||||
| 310 | WD26X20551 | Pump Wash Main Asm |
|
- | |||||
| 321 | WD21X22598 | Sensor Turbidity Asm |
|
- | |||||
| 324 | WD01X10580 | Shield Wash Pump |
|
- | |||||
| 325 | WD26X21697 | Pump Drain Asm |
|
- | |||||
| 330 | WD01X20302 | Clamp |
|
- | |||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X22781 | Scr 10-18 X 5/8 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X21754 | Diverter Passive Asm |
|
- | |||||
| 505 | WD18X10055 | Sump Manifold |
|
- | |||||
| 740 | WD01X10584 | Shield Drain Pump |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04A01338 | Wash Pump Kit |
|
$ 200.56 | ||||||
| WG04A01085 | Diverter Asm Kit |
|
Immediately | $ 66.80 | |||||
| WG04A04294 | Funnel And Gasket Asm (Replaces: WG04L05369) |
|
Immediately | $ 55.68 | |||||
| WG04A03389 | Srv-door Closing Kit (Replaces: WG03A02201) |
|
$ 174.51 | ||||||
| WG04A01023 | Bearing Spray Arm Low - Spacer |
|
$ 3.97 | ||||||
| WG04L03829 | Inner Rail Upr Rack Asm |
|
Immediately | $ 88.15 | |||||
| WG04L00218 | Joint |
|
$ 21.63 | ||||||
| WG04A05239 | Module Detergent (Replaces: WG04F09253) |
|
Immediately | $ 108.73 | |||||
| WG04F06693 | Percuteur |
|
Immediately | $ 9.53 | |||||
| WG04F11770 | Valve Water Asm (Replaces: WG04F05889) |
|
Immediately | $ 76.30 | |||||
| WG04A03669 | P2a Drain Pump Kit (Replaces: WG04F05383) |
|
Immediately | $ 305.97 | |||||
| WG04F05273 | Cvr Console Asm |
|
$ 246.49 | ||||||
| WG04A03393 | Control Board Main Good (Replaces: WG04F05129) |
|
$ 222.56 | ||||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F04678 | Hose Wash Pump Inlet |
|
$ 16.35 | ||||||
| WG04F04671 | Hose Elbow Drain |
|
Immediately | $ 76.30 | |||||
| WG04F00462 | Asm Entonnoir & Joint |
|
$ 15.72 | ||||||
| WG04A03393 | Ens Tableau |
|
$ 222.56 | ||||||
| WG04A03389 | Courroie De Suspension |
|
$ 174.51 | ||||||
| WG04F10218 | Kit Svc Ui Top Logic (Replaces: WG04A02632) |
|
$ 199.24 | ||||||
| WG04A04294 | Nut Water Inlet (Replaces: WG04A02627) |
|
Immediately | $ 55.68 | |||||
| WG04A01454 | Ens. Porte Asm. Ext. |
|
$ 246.49 |
