SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism

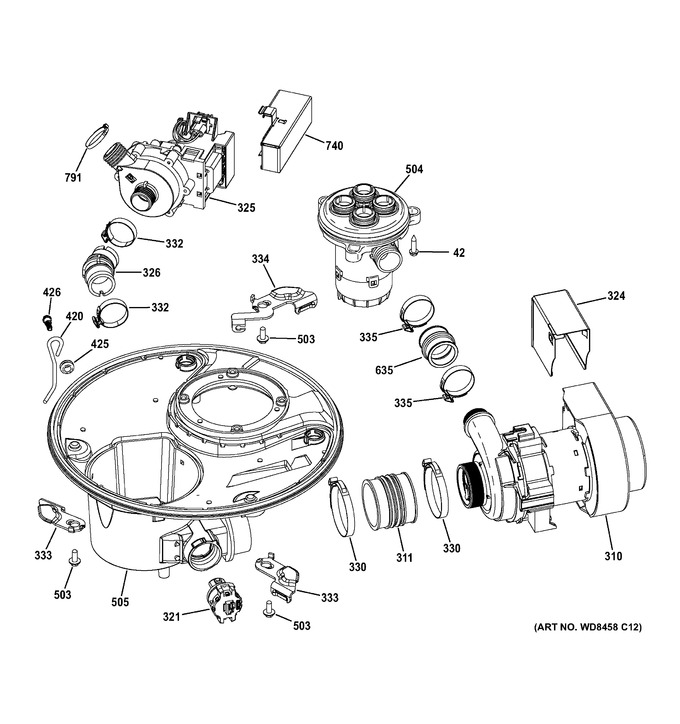

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
310	WD26X20551		Pump Wash Main Asm		Appelez-nous	-
311	WD24X10059		Hose Wash Pump Inlet		Appelez-nous	-
321	WG04F05595		Sensor Turbidity Asm   (Replaces: WD21X10494)				$ 50.92
324	WD01X10580		Shield Wash Pump		Appelez-nous	-
325	WD35X20878		Pump Drain Kit		Appelez-nous	-
326	WG04F04671		Hose Elbow Drain   (Replaces: WD24X10060)			Immediately	$ 76.30
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X10094		Wd02x10093		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WG04A02646		Active Diverter Asm Kit   (Replaces: WD35X20598)				$ 152.60
505	WD18X10055		Sump Manifold		Appelez-nous	-
635	WD24X10058		Hose Wash Pump Outlet		Appelez-nous	-
740	WD01X10584		Shield Drain Pump		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
	WG04F04678		Boyau				$ 16.35
	WG04F04559		Conduit Tiered Blast Asm				$ 68.39
	WG04F04517		Cable Asm Pulley			Immediately	$ 19.06
	WG04F04276		Timer Washer			Immediately	$ 185.19
	WG04A03618		Pump Wash Kit   (Replaces: WG04A03453)			Immediately	$ 322.24
	WG04A03397		Kit Svc Machine Best				$ 127.69
	WW01F03176		Detergent Module Kit   (Replaces: WG04A03376)			Immediately	$ 96.30
	WG04A03280		Countertop Bracket			Immediately	$ 30.76
	WG04A02646		Active Diverter Asm Kit				$ 152.60
	WG04F10015		Diverter Hose & Clamp Kit   (Replaces: WG04A02645)				$ 27.00
	WG04F12108		Pump Drain Kit   (Replaces: WG04A02642)			Immediately	$ 208.41
	WG04F10218		Kit Svc Ui Top Logic   (Replaces: WG04A02632)				$ 199.24
	WG04A01462		Kit Door Inner Asm				$ 248.41
	WG04A01454		Kit Door Asm Outer				$ 246.49
	WG04A01338		Wash Pump Kit				$ 200.56
	WG01A01653		Toe Kick Asm Bb   (Replaces: WG04A01322)			Immediately	$ 45.24
	WG04A01134		Kit - Piranha Clamps Ps			Immediately	$ 21.85
	WG04A01079		Ct Screw Asm			Immediately	$ 33.35
	WG04L05348		Bezel & Cvr Console Asm				$ 500.36
	WG04A01013		Badge Ge Asm				$ 23.82
	WG04A03757		Machine Control Good   (Replaces: WG03F05898)				$ 249.69
	WG04A03389		Srv-door Closing Kit   (Replaces: WG03A02201)				$ 174.51
	WG03A02167		Upper Spray Arm Kit			Immediately	$ 98.12
	WG04A01023		Bearing Spray Arm Low - Spacer				$ 3.97
	WG04F12108		Pump Drain Asm   (Replaces: WG04L04531)			Immediately	$ 208.41
	WG01F06090		Coudre   (Replaces: WG04L04123)				$ 15.88
	WG04L04122		Pan Leak				$ 40.47
	WG04A04003		Gasket Tub   (Replaces: WG04L04119)			Immediately	$ 192.73
	WG04L03829		Rail IntÃ#rieur			Immediately	$ 88.15
	WG04L03764		Panier ├# Ustensile Asm				$ 120.59
	WG04L03598		Arm Spray Lower Asm				$ 104.95
	WG04L03242		Support				$ 34.94
	WG04F09703		Machine Control Good				$ 174.70
	WG04A04003		Gasket Tub Ss   (Replaces: WG04F09561)			Immediately	$ 192.73
	WG04F08195		Inverter Service Kit				$ 250.95
	WG04F09348		Adapter Conduit Asm   (Replaces: WG04F07027)				$ 77.58
	WG04F07026		Sump Manifold				$ 72.06
	WG04F06762		Insulation Tub Blanket				$ 131.95
	WG04F06693		Striker Latch			Immediately	$ 9.53
	WG04A03757		Control Board Main Good   (Replaces: WG04F05128)				$ 249.69
	WG04F05111		Console Top Control				$ 27.00
	WG04F04857		Interrupteur Asm			Immediately	$ 100.20
	WG04F04726		Latch Tub Side Standard			Immediately	$ 69.95

    View Diagram in Separate Window       Print Part List
