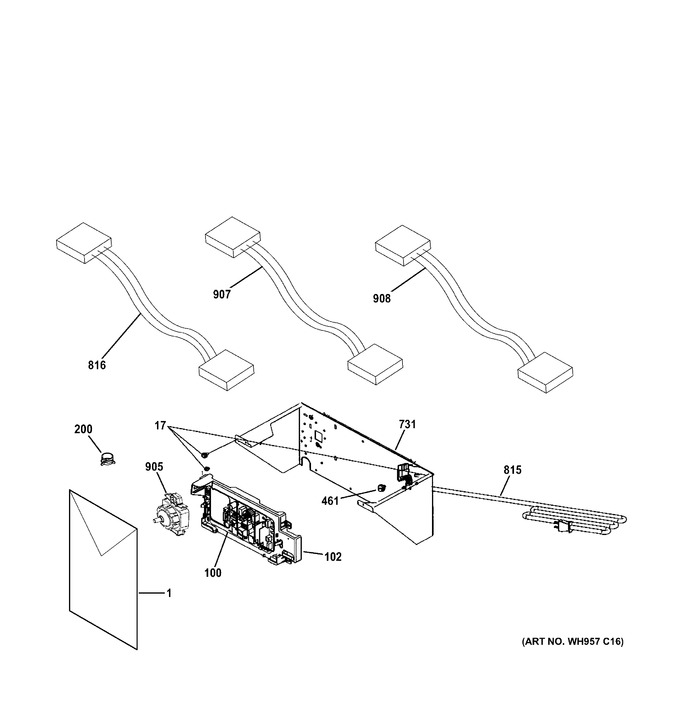

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16869		Pub # Mini Manual		Appelez-nous	-
1	49-90532		Pm Manual U&c Doe 2015 L		Appelez-nous	-
1	31-16727		Pm Install Instructions/		Appelez-nous	-
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
100	WH12X22743		Centauro Doe 2015		Appelez-nous	-
102	WH16X20555		Support Board		Appelez-nous	-
200	WH01X10592		Clip Hose		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
731	WE19M1773		Enclosure Board		Appelez-nous	-
815	WE26M366		Power Cord And Label Asm		Appelez-nous	-
816	WE26X22035		Harness Fuse Asm		Appelez-nous	-
905	WW03F00101		Prssure Switch - Elec   (Replaces: WH12X10530)				$ 109.01
907	WW03F00104		Harness - Pressure   (Replaces: WH19X10087)				$ 13.69
908	WH19X10084		Harness Extension Asm		Appelez-nous	-
