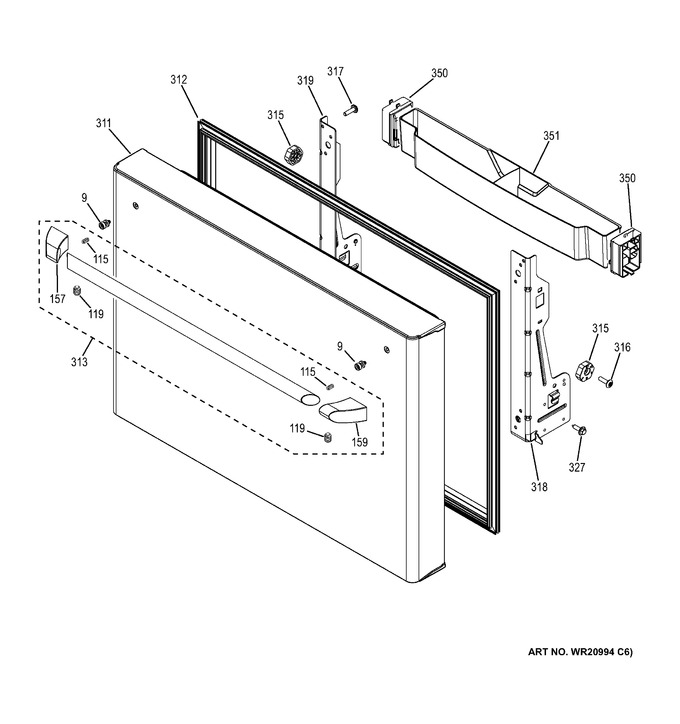

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	WR01A00255		Fastener Handle Ss   (Replaces: WR02X12028)			Immediately	$ 15.88
115	WR01X11057		Set Screw .250 Dia.		Appelez-nous	-
119	WR02X11850		Set Screw		Appelez-nous	-
157	WR12X11050		Handle Cap End		Appelez-nous	-
159	WR12X11051		Handle Cap End		Appelez-nous	-
311	WR78X23987		Door Foam Asm Fz Cafe		Appelez-nous	-
312	WR14X10376		Gasket Fz Dgy Es		Appelez-nous	-
313	WR12X11048		Handle Asm Fz		Appelez-nous	-
315	WR02X13627		Cam Vert Adjustment		Appelez-nous	-
316	WR01X11010		Scr 1/4-20 Gx Trt 7/8 S		Appelez-nous	-
317	WR01X11049		Scr 1/4-20 Hxw 7/8 S		Appelez-nous	-
318	WR02X24132		Bracket Door Fz Rh		Appelez-nous	-
319	WR02X24133		Bracket Door Fz Lh		Appelez-nous	-
327	WR01X11011		Scr1/4-20 Hxw 3/4s		Appelez-nous	-
350	WG03A01594		Support Bin Fz   (Replaces: WR02X13628)			Immediately	$ 19.06
351	WG03A00267		Bin Freezer   (Replaces: WR71X11038)				$ 52.50
