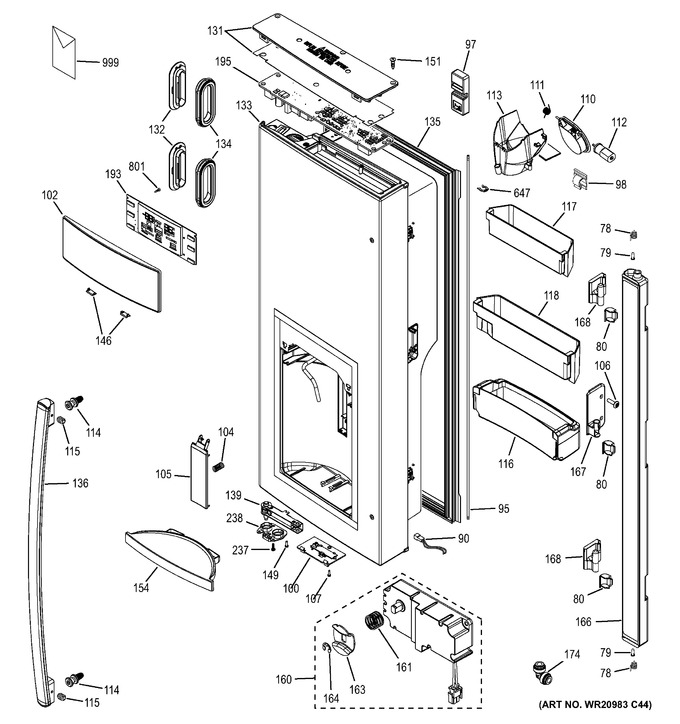

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 78 | WG03L05095 | Spring Hinge Mullion (Replaces: WR01X11052) |
|
Immediately | $ 10.86 | ||||
| 79 | WR01X11053 | Sleeve Spring Mullion |
|
- | |||||
| 80 | WR02X13739 | Hinge Cap |
|
- | |||||
| 90 | WR23X10755 | Harness Led Jumper |
|
- | |||||
| 95 | WR02X13701 | Tube Pex Lh Door |
|
- | |||||
| 97 | WR02X13777 | Insert Funnel |
|
- | |||||
| 98 | WR01X11064 | Clip Phgl |
|
- | |||||
| 100 | WR55X23636 | Cover Led Fz Asm |
|
- | |||||
| 102 | WR17X24125 | Display Cap Touch Asm Ss |
|
- | |||||
| 104 | WR01X11027 | Spring |
|
- | |||||
| 105 | WG03L00831 | Cover Paddle Asm Ss (Replaces: WR17X13060) |
|
$ 73.11 | |||||
| 106 | WR01X11054 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 107 | WR01X11029 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 110 | WR17X13057 | Duct Door Asm |
|
- | |||||
| 111 | WR01X11017 | Spring Duct Door |
|
- | |||||
| 112 | WR60X10344 | Motor Duct Door |
|
- | |||||
| 113 | WR17X13099 | Funnel Ice |
|
- | |||||
| 114 | WR01A01801 | Fastener Door Handle (Replaces: WR01X11007) |
|
Immediately | $ 12.71 | ||||
| 115 | WG03A01608 | Set Screw (Replaces: WR01X11014) |
|
Immediately | $ 6.35 | ||||
| 116 | WR71X11051 | Bin Door Ice Btm Asm |
|
- | |||||
| 117 | WR71X11045 | Bin Ice Door Top Lh |
|
- | |||||
| 118 | WR71X11046 | Bin Ice Door Mid Lh |
|
- | |||||
| 131 | WR17X13205 | Pcb Cover Asm Dgy |
|
- | |||||
| 132 | WR14X10367 | Collar Gasket |
|
- | |||||
| 133 | WR78X24126 | Door Disp Foam Asm Ff Lh |
|
- | |||||
| 134 | WR14X10364 | Port Gasket |
|
- | |||||
| 135 | WG03L09792 | Gasket Ff Dgy (Replaces: WR14X10377) |
|
$ 145.45 | |||||
| 136 | WR12X23647 | Arc Handle Asm Ff |
|
- | |||||
| 139 | WR11X23034 | Closure Door Asm Lh |
|
- | |||||
| 146 | WR02X13655 | Shield Led Light |
|
$ 19.05 | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 151 | WR01X11028 | Scr 8-18 Flp 1/2 S |
|
- | |||||
| 154 | WR17X23725 | Drip Tray Ss |
|
- | |||||
| 160 | WR60X10345 | Auger Motor Asm |
|
- | |||||
| 161 | WR02X13645 | Spring Clutch Am |
|
- | |||||
| 163 | WR02X13647 | Clutch Coupling Am |
|
- | |||||
| 164 | WR02X13648 | E Clip |
|
- | |||||
| 166 | WR17X13240 | Mullion Articulating Asm |
|
- | |||||
| 167 | WR13X10984 | Hinge Center Mullion |
|
- | |||||
| 168 | WR13X10985 | Hinge Mullion |
|
- | |||||
| 174 | WR02X13737 | Connector 90 Deg 5/16 |
|
- | |||||
| 193 | WR55X23724 | Pcb Asm Led Icon Ui |
|
- | |||||
| 195 | WR55X23065 | Pcb Asm Door Control |
|
- | |||||
| 237 | WR01X11032 | Scr 10-24 Ab Rnt 20 5/8 |
|
- | |||||
| 238 | WR02X13634 | Stop Door Rh/lh Asm |
|
- | |||||
| 647 | WR01X11041 | Quick Clip Connector 1/4 |
|
- | |||||
| 801 | WD02X10129 | 6-19 X 1/4 Torx Pan Head |
|
- | |||||
| 999 | 31-51895 | Pm Mini Manual 29 Good |
|
- | |||||
| 999 | 31-49043 | Pm Quick Install Guide |
|
- | |||||
| 999 | 49-60714 | Pm Quick Use & Care |
|
- |
