Diagram # Part Number Description Series Availability Ships Price Add to Cart
570 WR1X1757 Scr 8-18 Hxw 1 1/4s Appelez-nous -
578 WR01X11012 Scr 8-18 Ab Hxw 9/16 S Appelez-nous -
685 WR1X1804 Scr 8-18 Ab Hxw 3/4 Wh Appelez-nous -
692 WZ04X0416 Scr 8-18 Ab Hxw 3/4 Appelez-nous -
803 WR32X10897 Pan Veg Asm Appelez-nous -
811 WR72X24401 Support Side Rh Appelez-nous -
813 WR72X24400 Support Side Lh Appelez-nous -
815 WR32X23743 Pan Meat Asm Appelez-nous -
819 WR72X23040 Cover Mp Top Back Appelez-nous -
823 WR32X24374 Cover Mp Top Front Appelez-nous -
831 WR72X21071 Track Side Ff Appelez-nous -
832 WR72X10429 Track Center Ff Appelez-nous -
833 WR32X10887 Shelf Cantilever Asm Appelez-nous -
835 WR02X13679 Spacer Track Appelez-nous -
883 WR01X23746 Washer Lock Appelez-nous -
885 WR17X13073 Damper Slide Veg Pan Appelez-nous -
886 WR02X13658 Roller Asm Appelez-nous -
887 WR72X10444 Guide Roller Veg Pan Appelez-nous -
888 WR02X13677 Knob Veg Pan Appelez-nous -
890 WR32X10892 Art Frame Vp Asm Appelez-nous -
897 WR32X10893 Glass Veg Pan Appelez-nous -
899 WR02X21803 Bar Reinforcement Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

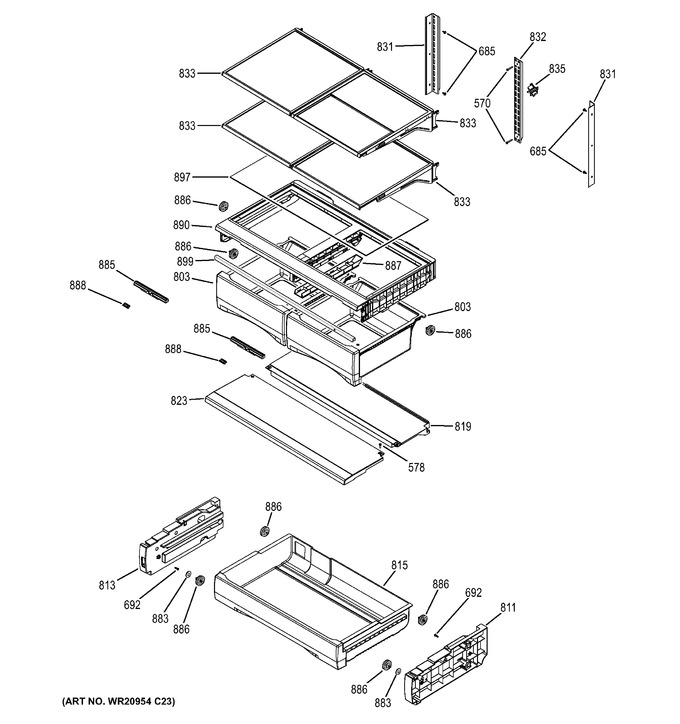

Diagram for GFE26GMHDES
